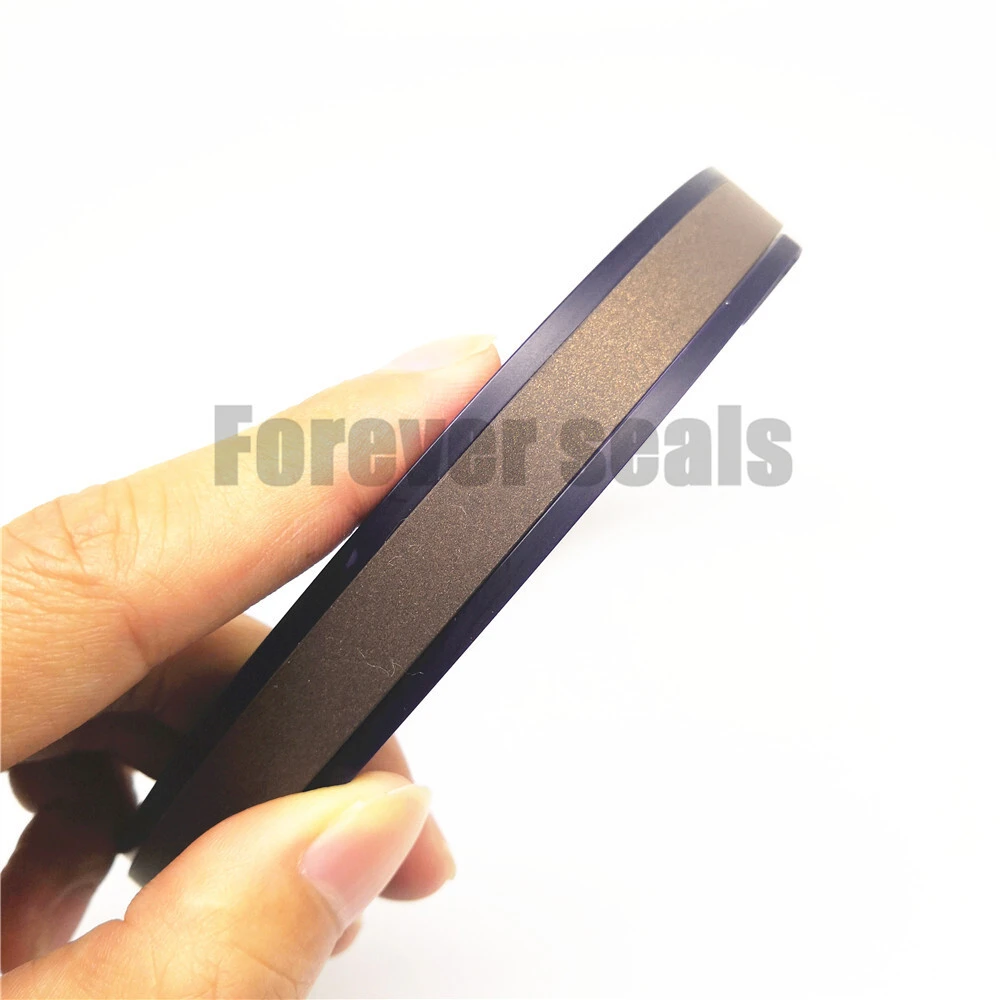

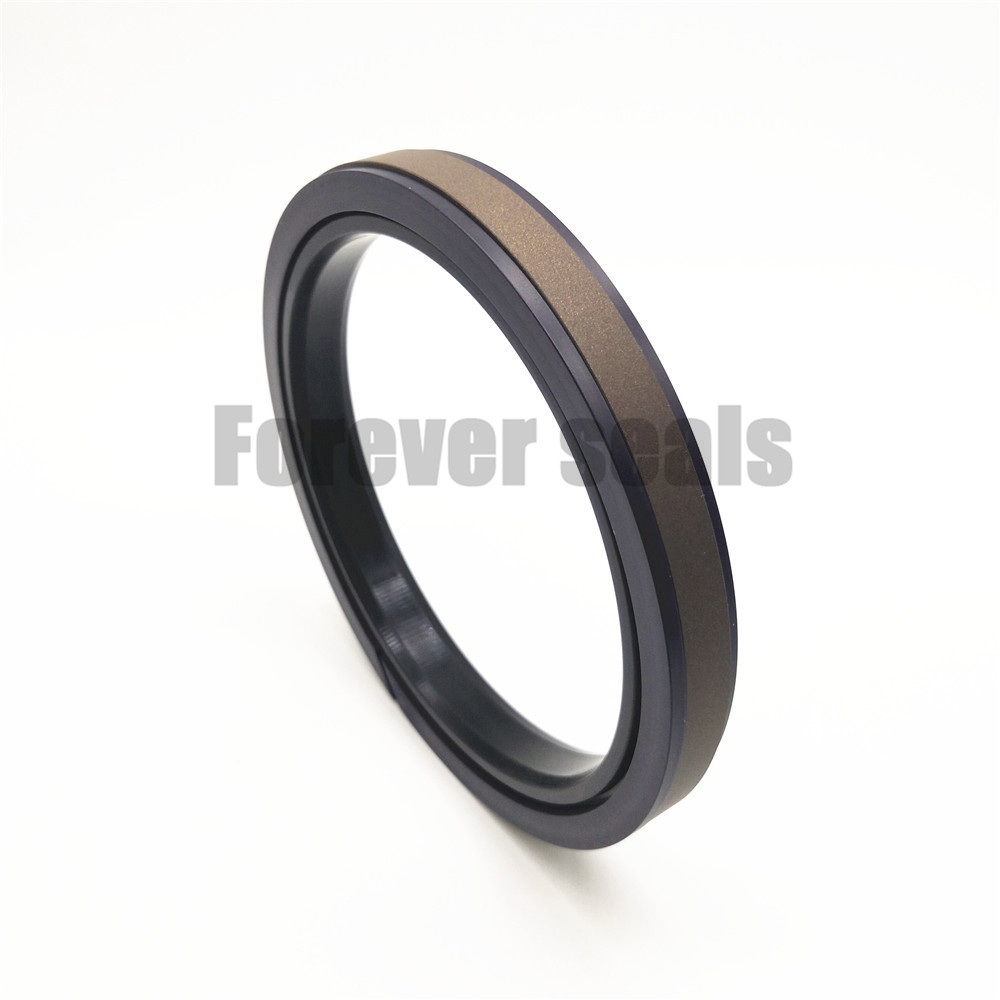

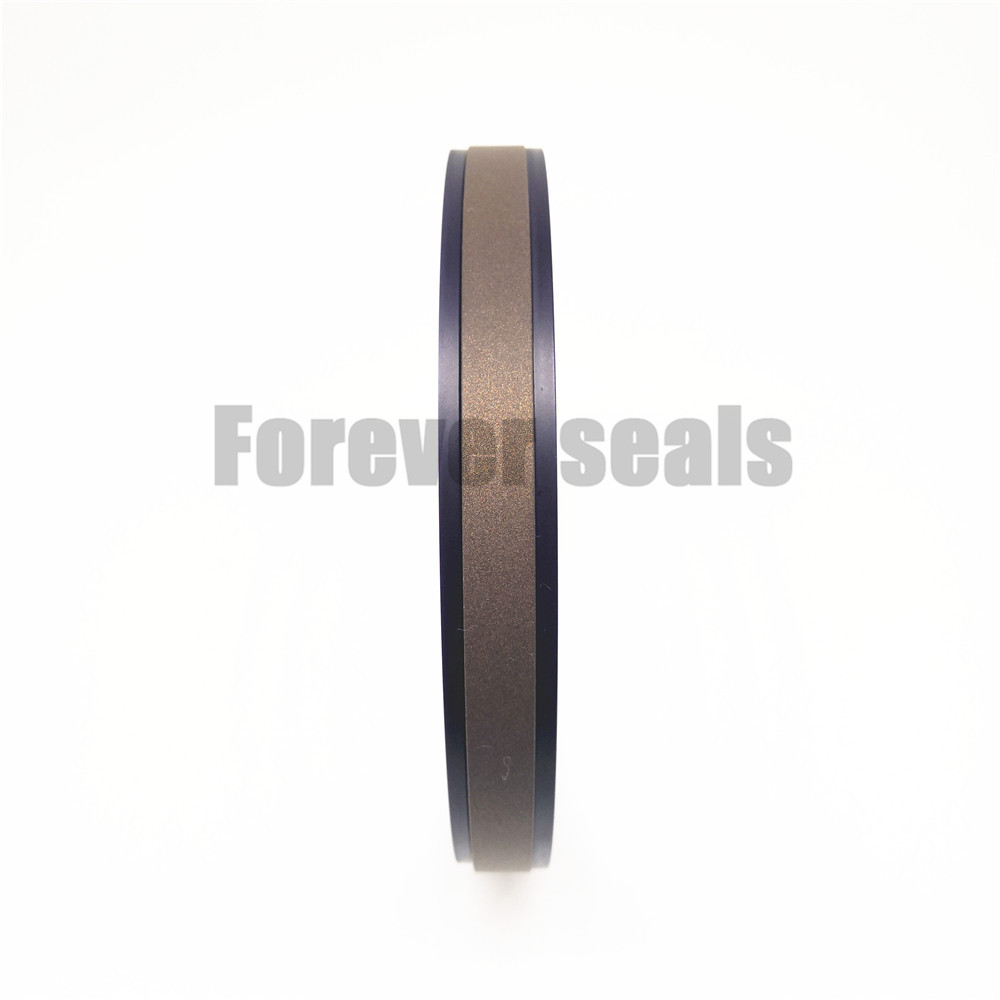

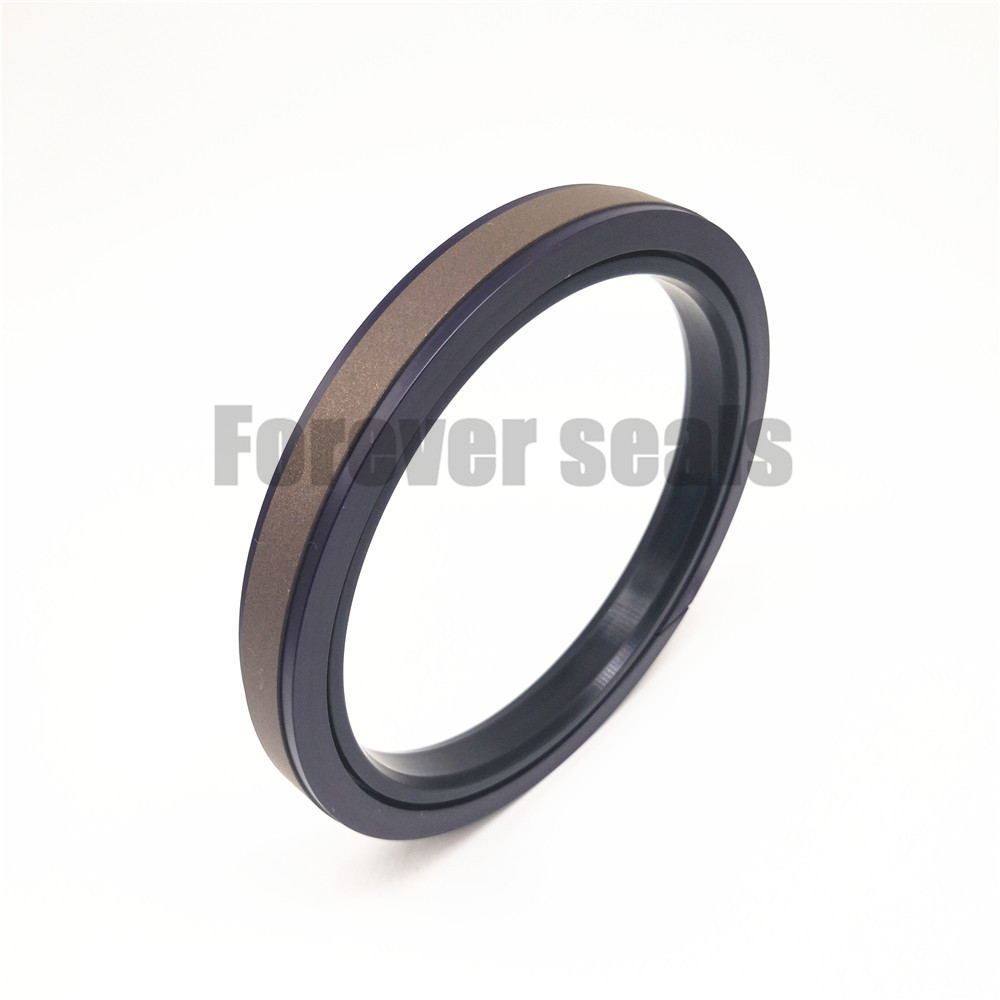

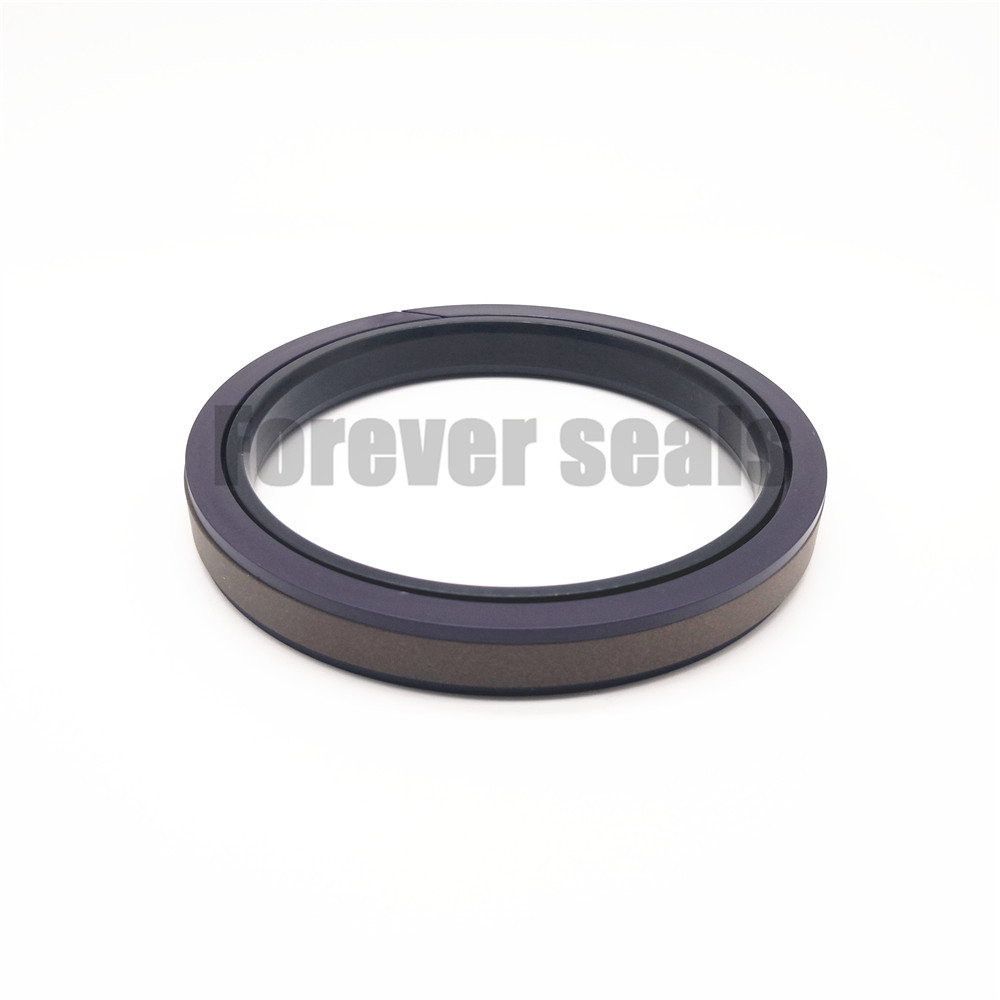

Compact bronze PTFE piston seal SPGW

  • Category: Piston seals
  • Temperature: -40 - +200℃
  • Material: filled PTFE
  • Color: brown
  • Medium: Hydraulic oils
  • Product description:Suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to l
  • INQUIRY   EMAIL

1. Description

SPGW of Forever Seals is suitable for long stroke, a wide range of fluids and high temperature occasions. The application of heavy duty double acting piston sealing under high pressure conditions is excellent. Applicable to larger piston clearance , it has good leakage control, extrusion resistance and wear resistance in heavy duty and construction machinery cylinder piston sealing system. Good static sealing property, simple groove structure, larger extrusion clearances can be allowed, be able to work in dusty condition.

2. Installation Recommendation

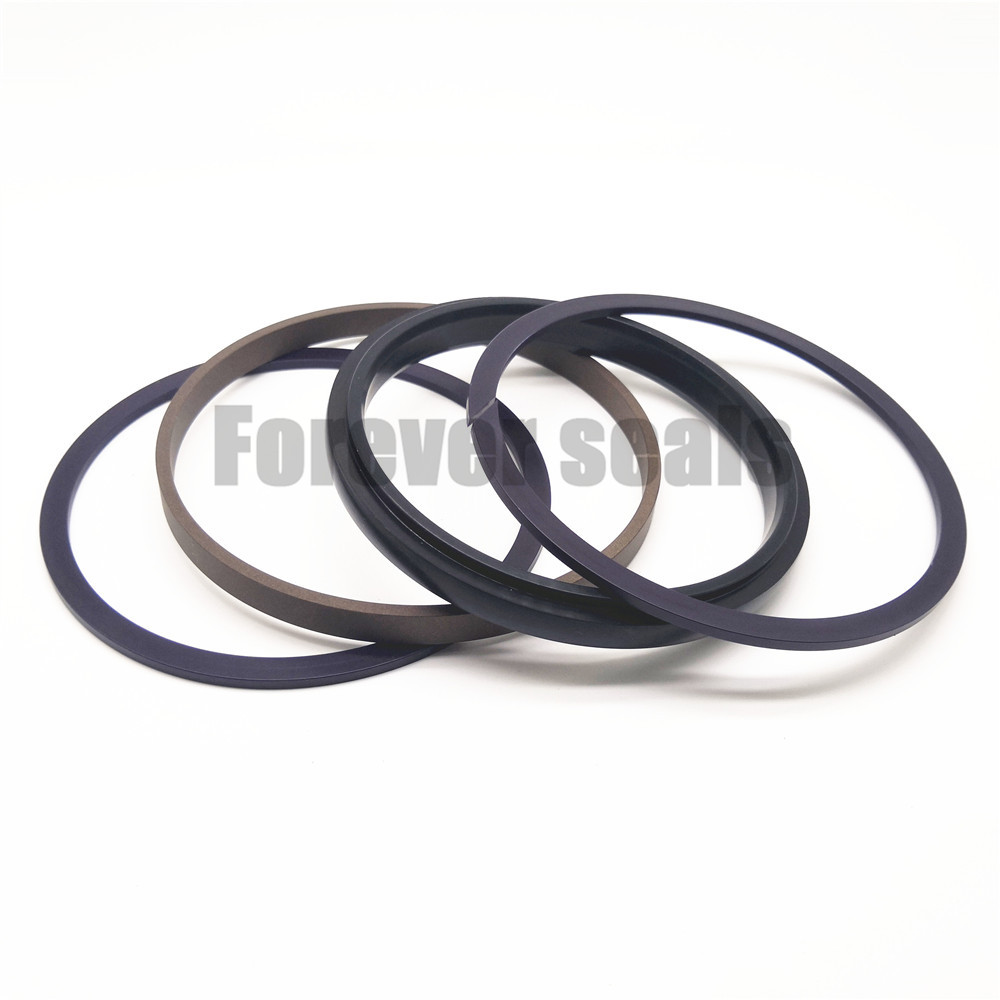

3. Standard materials

Sealing ring: filled PTFE

O-Ring: NBR / FKM

Back-up ring: POM / PA

4. Working Conditions

Working  Conditions

Diameter Range

Pressure Range

Temperature Range

Speed

Medium

50 - 350mm

0 - 50MPa

-30℃ +100℃

1.5 m/s

hydraulic oil, flame retardant liquid, water and others

5. Installation Dimensions

Nominal Size of Packing, and Housing dimensions

L+0.2

Order No.

D1

dN

H

50

55

60

36

41

46

8.5

8.5

8.5

9

9

9

SPGW50*36*8.5

SPGW55*41*8.5

SPGW60*46*8.5

63

65

70

48

50

55

10.5

10.5

10.5

11

11

11

SPGW63*48*10.5

SPGW65*50*10.5

SPGW70*55*10.5

75

80

85

60

65

70

10.5

10.5

10.5

11

11

11

SPGW75*60*10.5

SPGW80*65*10.5

SPGW85*70*10.5

90

95

100

75

80

85

10.5

10.5

12

11

11

12.5

SPGW90*75*10.5

SPGW95*80*10.5

SPGW100*85*12

105

110

115

90

95

100

12

12

12

12.5

12.5

12.5

SPGW105*90*12

SPGW110*95*12

SPGW115*100*12

120

125

130

105

102

107

12

15.5

15.5

12.5

16

16

SPGW120*105*12

SPGW125*102*15.5

SPGW130*107*15.5

135

140

145

112

117

122

15.5

15.5

15.5

16

16

16

SPGW135*112*15.5

SPGW140*117*15.5

SPGW145*122*15.5

150

155

160

127

132

137

15.5

15.5

15.5

16

16

16

SPGW150*127*15.5

SPGW155*132*15.5

SPGW160*137*15.5

165

170

180

142

147

157

15.5

15.5

15.5

16

16

16

SPGW165*142*15.5

SPGW170*147*15.5

SPGW180*157*15.5

185

190

200

162

167

177

15.5

15.5

15.5

16

16

16

SPGW185*162*15.5

SPGW190*167*15.5

SPGW200*177*15.5

210

220

225

187

197

202

15.5

15.5

17

16

16

17.5

SPGW210*187*15.5

SPGW220*197*15.5

SPGW225*202*15.5

230

240

250

207

217

222

17

17

17

17.5

17.5

17.5

SPGW230*207*15.5

SPGW240*217*15.5

SPGW250*222*17

260

270

280

232

242

252

17

17

17

17.5

17.5

17.5

SPGW260*232*17

SPGW270*242*17

SPGW280*252*17

300

320

350

272

292

322

17

17

17

17.5

17.5

17.5

SPGW300*272*17

SPGW320*292*17

SPGW350*322*17
