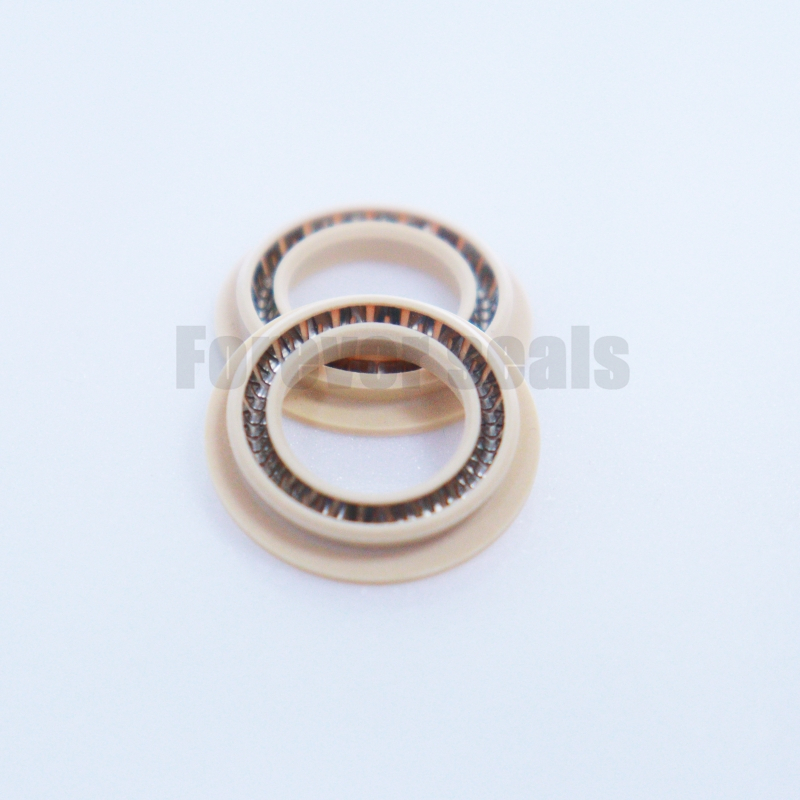

Trelleborg TVM Series Spring Energized Seal - PEEK Material
Compliant with Trelleborg standards | Excellent wear resistance & chemical stability
The Trelleborg Standard TVM Type Spring Energized Seal is a high-performance industrial sealing solution, made with premium PEEK material. This material delivers exceptional wear resistance, chemical stability, and mechanical strength, enabling reliable operation in harsh conditions like high temperatures or exposure to aggressive fluids.
Compliant with Trelleborg’s strict quality standards, the TVM seal ensures consistent performance and long service life, reducing equipment downtime. Its spring-energized design enhances sealing integrity, maintaining a tight, leak-proof seal across varying pressures and temperatures.
Ideal for hydraulic systems, automotive components, and process machinery, it combines PEEK’s advantages with Trelleborg’s engineering expertise, serving as a trusted, efficient sealing choice.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
- Superior Material Performance: Crafted from high-grade PEEK, the TVM Type Spring Energized Seal boasts exceptional heat resistance (operating temperature up to 260°C), chemical inertness to aggressive fluids (acids, oils, solvents), and outstanding wear resistance—ensuring long-term durability even in harsh conditions.
- Reliable Sealing Integrity: The spring-energized design compensates for dimensional variations and equipment wear, maintaining a tight, leak-proof seal across fluctuating pressures (0-30 MPa) and temperatures.
- Consistent Quality: Compliant with Trelleborg’s strict standards, each seal undergoes rigorous testing (pressure, leakage, material composition) to guarantee uniform performance, reducing maintenance frequency and downtime.
2. Working Principle
The TVM Type Seal operates on a spring-energized mechanism combined with PEEK’s inherent rigidity. When installed, the integrated spring exerts constant pressure on the PEEK sealing lip, forcing it to 贴合 (conform to) the mating surface. As system pressure increases, the fluid pressure further energizes the lip—enhancing contact force and sealing tightness. PEEK’s low friction coefficient minimizes wear during movement, while its chemical stability prevents degradation from media exposure, ensuring sustained sealing efficiency.
3. Product Details
- Material Specifications: 100% virgin PEEK (density: 1.32 g/cm³; tensile strength: 90 MPa), with optional FDA-compliant grades for food/pharmaceutical applications.
- Design Features: Precision-machined sealing lip (tolerance ±0.02 mm) for optimal surface contact; corrosion-resistant stainless steel spring (316L) for long-term elasticity; standardized TVM dimensions for direct replacement of Trelleborg original parts.
- Quality Certifications: ISO 9001, RoHS, and CE certified, with traceable batch numbers for full product lifecycle management.
4. Application Range
The Forever Seals TVM Type PEEK Seal is widely used in industries requiring high-performance sealing:
- Hydraulics & Pneumatics: Valves, cylinders, and pumps in construction machinery or industrial automation.
- Automotive: Transmission systems, engine components, and EV battery cooling circuits.
- Process Industry: Chemical reactors, pharmaceutical mixers, and food processing equipment (FDA grade available).
- Aerospace & Marine: Low-maintenance sealing for aircraft hydraulic systems or marine engines (resistant to saltwater corrosion).
5. FAQ (Frequently Asked Questions)
- Q1: Can this seal replace Trelleborg’s original TVM seal directly?A: Yes. Our TVM Type Seal follows Trelleborg’s standard dimensions and performance criteria, enabling drop-in replacement without modifying equipment.
- Q2: What is the maximum media compatibility?A: PEEK resists most industrial fluids, including mineral oils, hydraulic fluids (ISO VG 32-68), acids (pH 2-12), and alcohols. Contact us for custom compatibility checks with special media.
- Q3: What is the typical service life?A: Under normal operating conditions (25-200°C, 0-20 MPa), the seal offers a service life of 2,000+ operating hours—20% longer than standard PTFE-based seals.
6. Company Selling Points
- Expertise in Sealing Solutions: 15+ years of experience in designing and manufacturing industrial seals, with a dedicated R&D team specializing in high-performance materials like PEEK.
- Customization Capability: Beyond standard TVM models, we offer tailored solutions (size, spring type, material grades) to meet unique customer requirements, with fast prototyping (7-10 days).
- Global Support: Worldwide distribution network and 24/7 technical support—our engineers provide on-site installation guidance and after-sales troubleshooting to ensure optimal seal performance.
