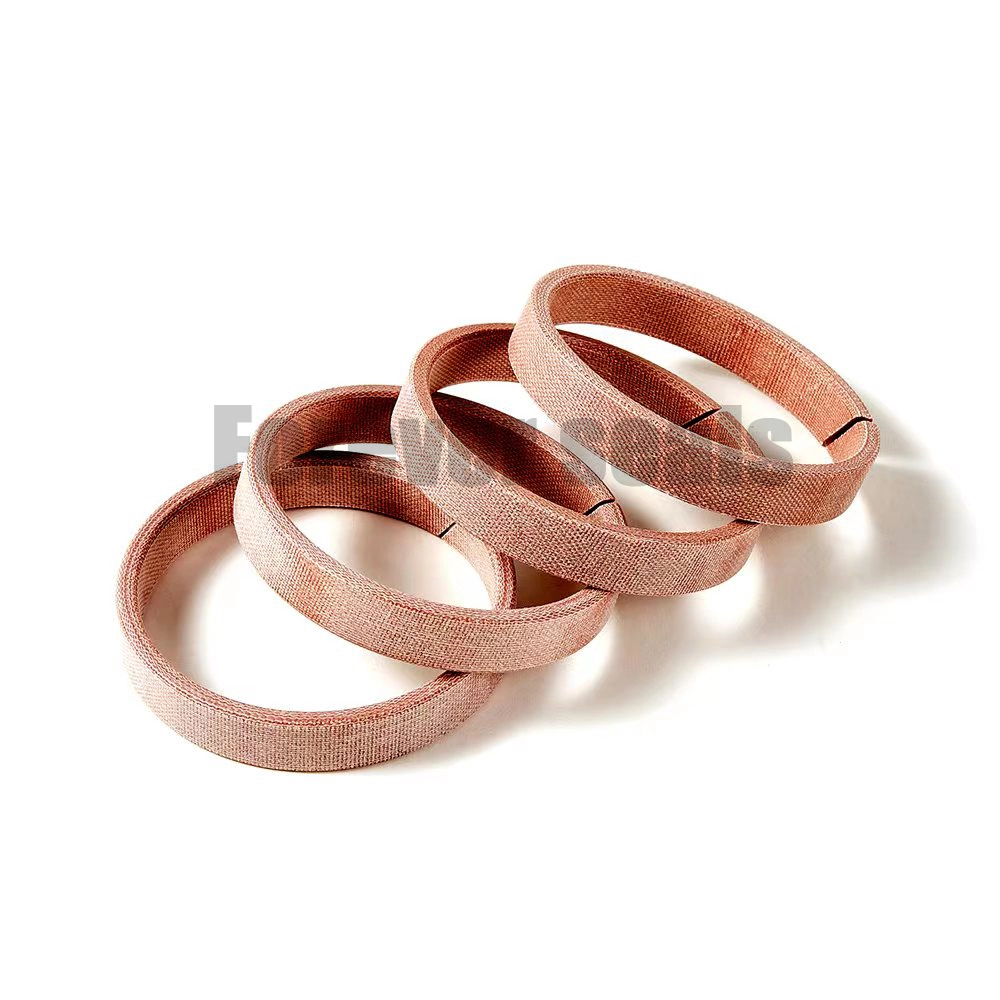

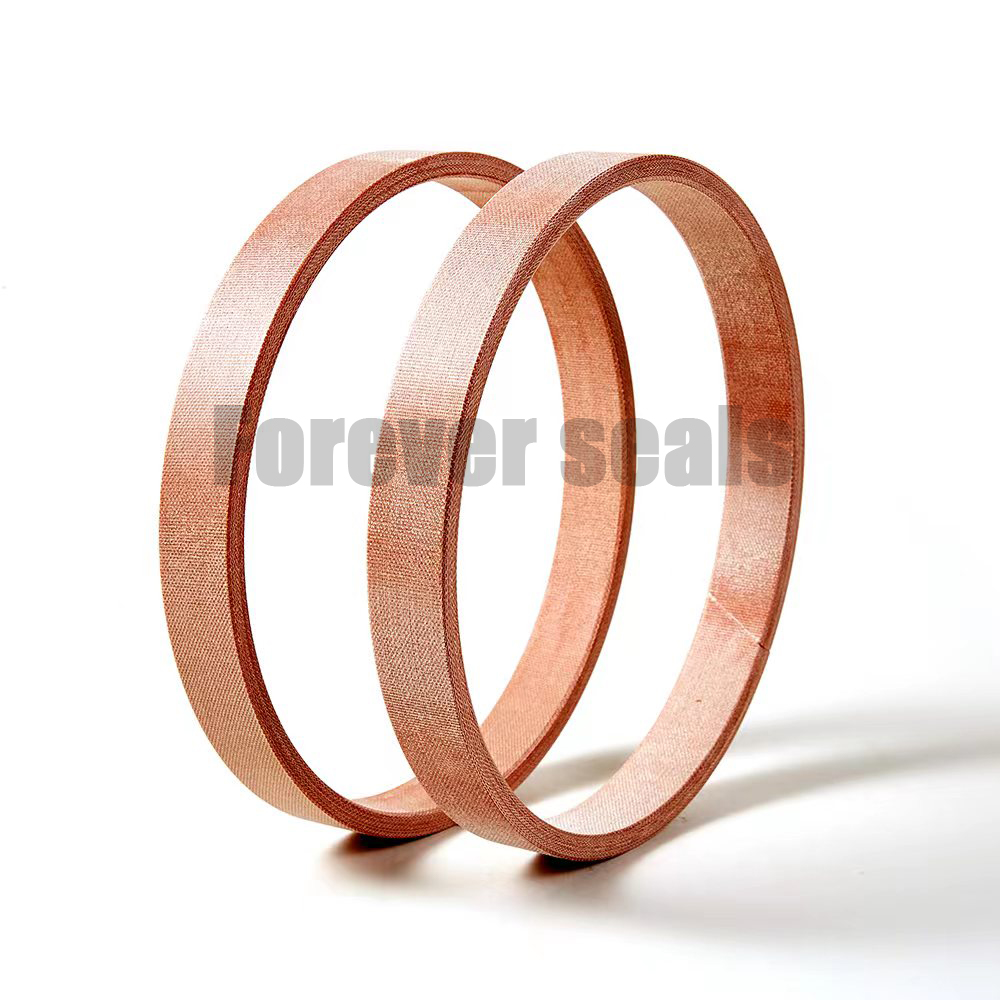

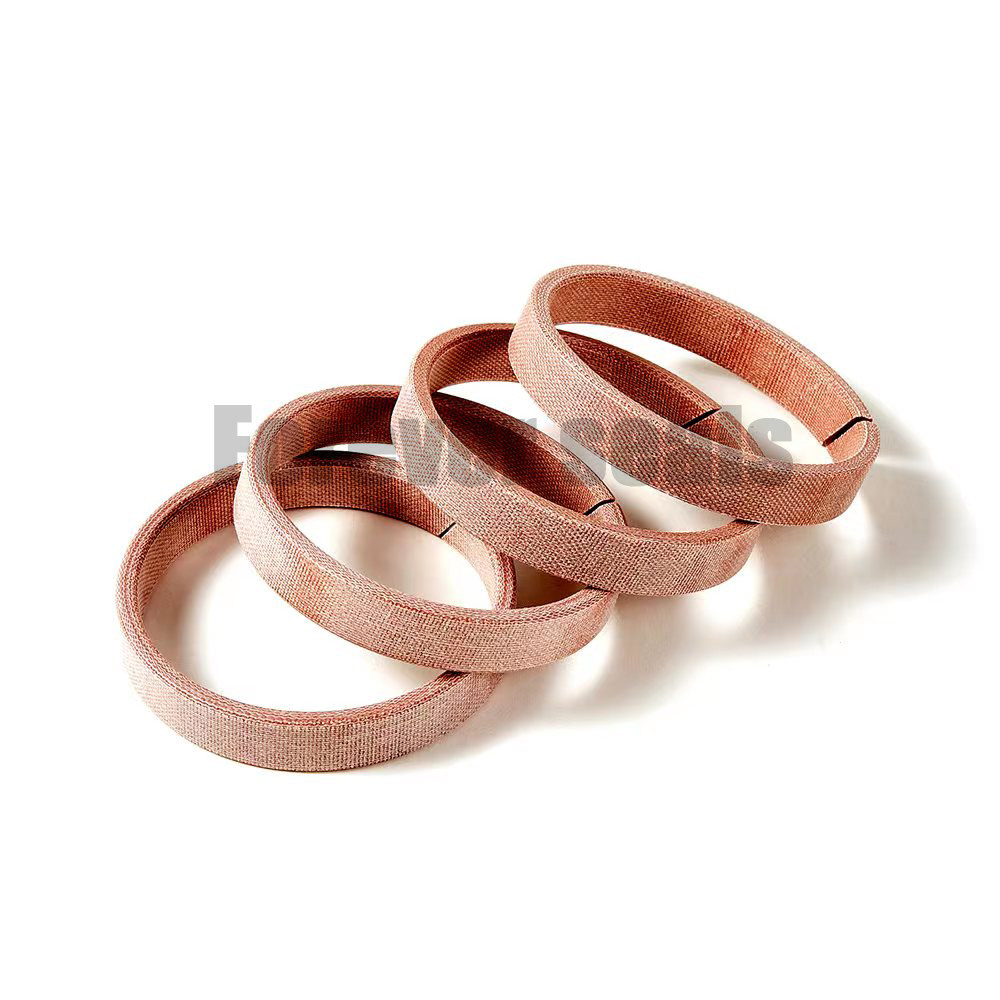

PHE Phenolic Resin Guide Rings
Precision Guide Components for Hydraulic & Pneumatic Systems
These guide rings, with the code WR, are crafted from PHE phenolic resin. They play a crucial role in hydraulic and pneumatic systems, providing precise guidance for pistons or piston rods. Boasting excellent mechanical strength, wear resistance, and corrosion resistance, these rings prevent misalignment during movement, reduce friction, and protect sealing components. By ensuring smooth and accurate motion, they significantly extend the service life of equipment. Widely used in engineering machinery, automotive, aerospace, and other fields, they are essential for optimizing the performance of hydraulic and pneumatic systems.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantages
As core guiding components coded WR and fabricated from high-grade PHE phenolic resin, these guide rings stand out with a comprehensive set of performance strengths. Beyond exceptional mechanical strength that resists deformation under heavy loads, they exhibit outstanding wear resistance—maintaining structural integrity even after prolonged contact with pistons or rods—and strong corrosion resistance against common hydraulic fluids, lubricants, and mild chemical environments. Their low friction coefficient minimizes energy consumption during system operation, while the inherent stability of PHE phenolic resin ensures long-term aging resistance, preventing brittleness or performance degradation over time. By providing precise radial and axial guidance, they effectively prevent piston/rod misalignment, reduce direct wear on sealing elements (such as O-rings or lip seals), and ultimately extend the overall service life of hydraulic/pneumatic equipment by up to 30% compared to standard plastic guide rings.
Working Principle
In hydraulic and pneumatic systems, the WR guide rings function as a "motion stabilizer" between the cylinder bore and piston/rod. When the system is activated, hydraulic or pneumatic pressure drives the piston/rod to move linearly. The guide rings, tightly fitted in the cylinder groove or on the piston, create a precise clearance (typically 0.05-0.1mm) that limits radial movement, preventing tilting, eccentricity, or metal-to-metal contact between the piston/rod and cylinder wall. Their PHE phenolic resin material’s low friction property ensures smooth motion without causing excessive resistance, while the material’s rigidity adapts to fluctuating pressure (up to 35MPa for standard models) — maintaining stable guidance even during pressure spikes. Additionally, the guide rings act as a buffer, absorbing minor vibrations from system operation, further protecting fragile sealing components from premature failure.
Product Details
Structural Design: Adopts a one-piece molded structure for high integrity, avoiding cracks or splits under stress. The inner and outer surfaces undergo precision polishing (Ra ≤ 0.8μm) to reduce friction and ensure uniform contact with mating parts.
Size Compatibility: Available in a wide range of standard sizes, with inner diameters from 16mm to 200mm and thicknesses from 3mm to 15mm; custom sizes are also offered to match non-standard cylinder/piston specifications.
Pressure & Temperature Range: Engineered to operate reliably under working pressures of 0-35MPa (standard) and temperatures of -20°C to 120°C (extended range up to 150°C for high-temperature modified models), suitable for most industrial operating conditions.
Quality Testing: Each unit undergoes 100% dimensional inspection (using coordinate measuring machines) and pressure resistance testing before leaving the factory, ensuring compliance with ISO 9001 quality standards.
Application Range
The WR guide rings are widely integrated into hydraulic and pneumatic systems across multiple industries, including:
Engineering Machinery: Hydraulic cylinders in excavators, loaders, cranes, and bulldozers (e.g., boom cylinders, bucket cylinders).
Automotive Industry: Pneumatic actuators in braking systems, hydraulic lift cylinders in commercial vehicles, and transmission hydraulic components.
Aerospace & Defense: Lightweight hydraulic actuators in aircraft landing gear, missile guidance system pneumatic components (compliant with aerospace-grade material standards).
General Industry: Injection molding machine hydraulic cylinders, textile machinery pneumatic actuators, and marine equipment hydraulic systems (resistant to saltwater mist corrosion).
FAQ
Q1: Can these WR guide rings withstand extreme temperature fluctuations, such as in outdoor winter applications?
A: Yes. The PHE phenolic resin used in our guide rings has excellent low-temperature toughness, remaining flexible at -20°C without cracking, and maintains thermal stability up to 120°C. For applications requiring higher temperature resistance (e.g., near engine compartments), we offer a modified PHE resin variant that operates reliably up to 150°C.
Q2: What is the recommended maintenance cycle for the guide rings, and how do I inspect for wear?
A: Under normal operating conditions (8-hour daily use, standard pressure/temperature), the maintenance cycle is 12-18 months. To inspect for wear, shut down the system, disassemble the cylinder, and check for: 1) visible scratches or grooves on the guide ring surface; 2) increased clearance between the ring and piston/rod (exceeding 0.2mm indicates replacement is needed); 3) material softening or deformation.
Q3: Do I need to apply lubricant to the guide rings during installation?
A: We recommend applying a thin layer of compatible lubricant (e.g., lithium-based grease or hydraulic fluid) to the guide ring surface before installation. This reduces initial friction during the first system operation and helps form a protective film, extending the ring’s service life. Avoid using lubricants containing strong solvents that may damage PHE resin.
Q4: Can Forever Seals provide custom guide rings for non-standard cylinder designs?
A: Absolutely. Our engineering team supports custom solutions—simply provide your cylinder bore diameter, piston rod diameter, groove dimensions, and operating conditions (pressure, temperature, fluid type). We will design and prototype the guide ring within 7-10 working days, with full performance testing before mass production.
Company Selling Points
At Forever Seals, we specialize in delivering high-performance sealing and guiding solutions tailored to industrial needs, with four core advantages:
Premium Material Sourcing: We use only high-purity PHE phenolic resin (imported from Germany) with strict material testing, ensuring each guide ring meets consistent quality standards.
Advanced Manufacturing: Equipped with CNC precision molding machines and automated polishing lines, our production process achieves a dimensional tolerance of ±0.02mm—higher than industry averages—for perfect fitting.
End-to-End Support: Beyond product supply, we offer pre-sales technical consultation (helping customers select models/sizes), on-site installation guidance, and after-sales warranty (18-month warranty for standard guide rings; 12-month for custom models). For bulk orders, we provide flexible delivery schedules and dedicated account managers to ensure timely communication.
Sustainability Commitment: Our manufacturing process reduces waste by 20% through recycling of excess resin, and all packaging materials are eco-friendly—aligning with our customers’ sustainability goals.
