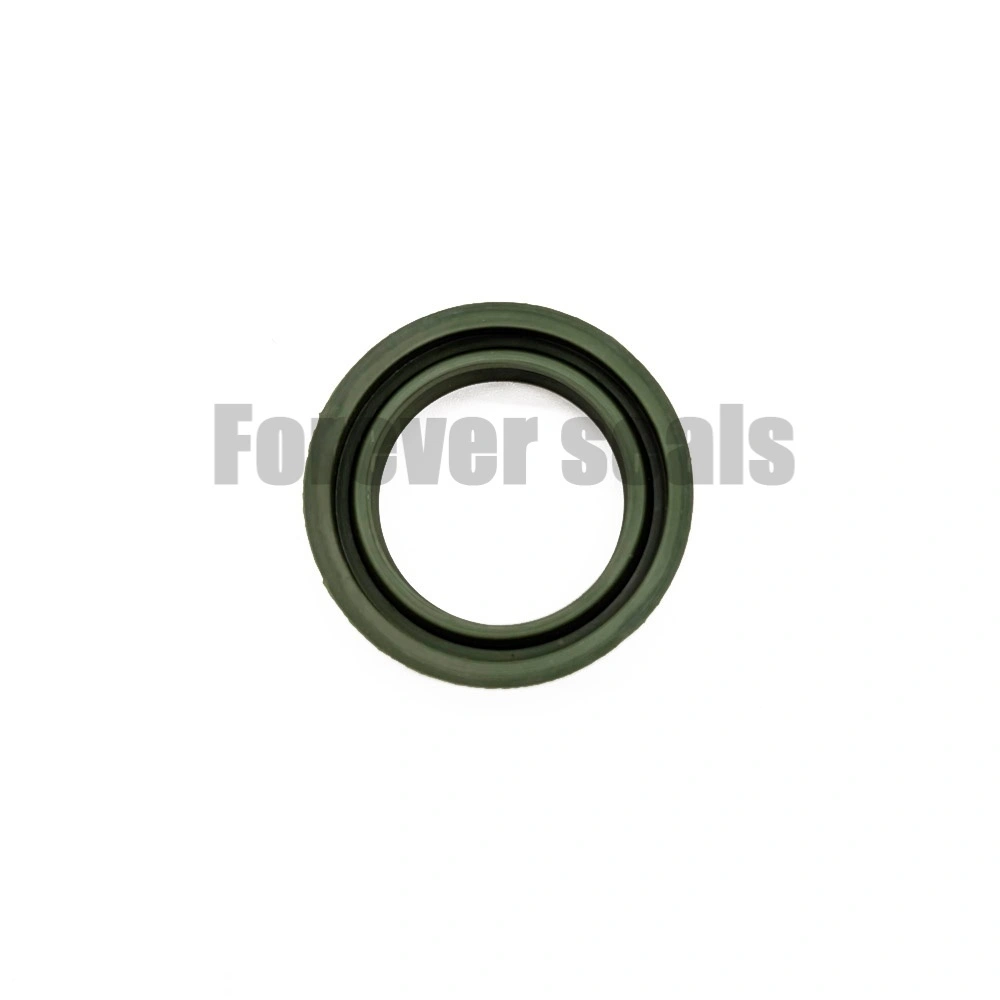

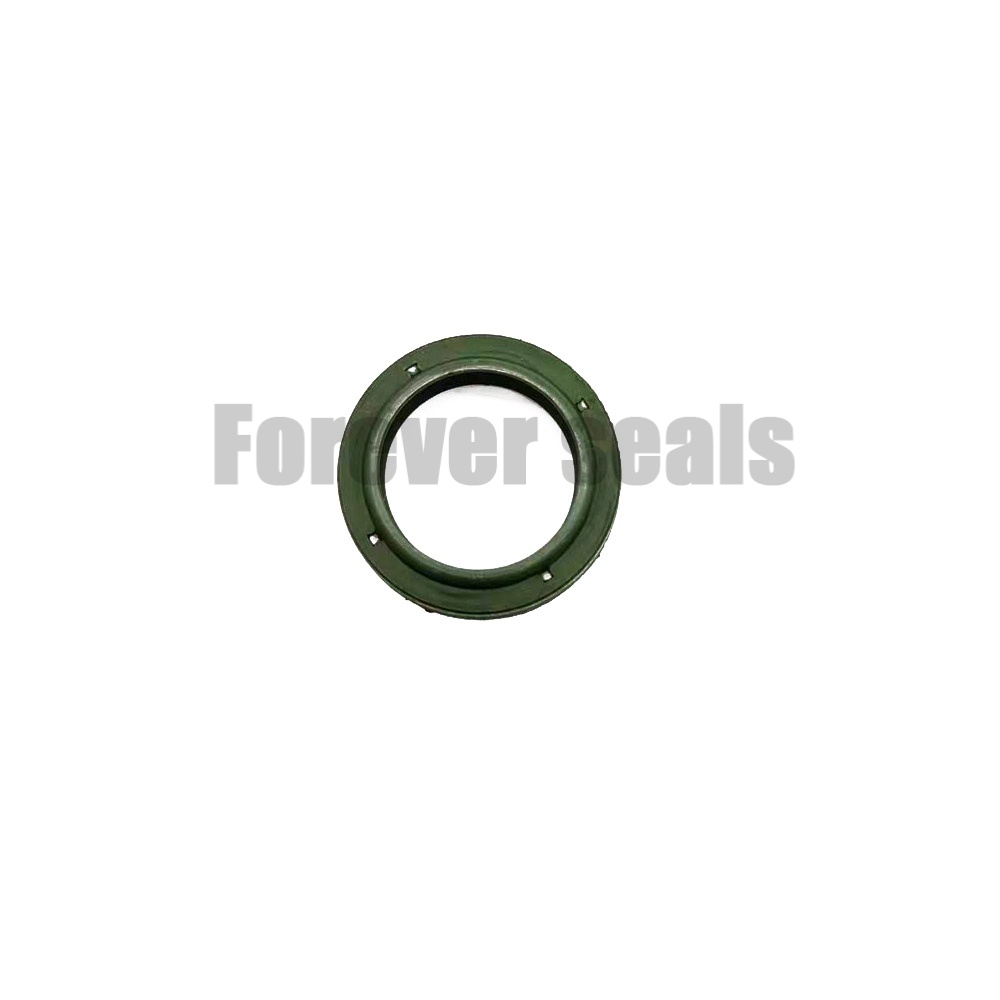

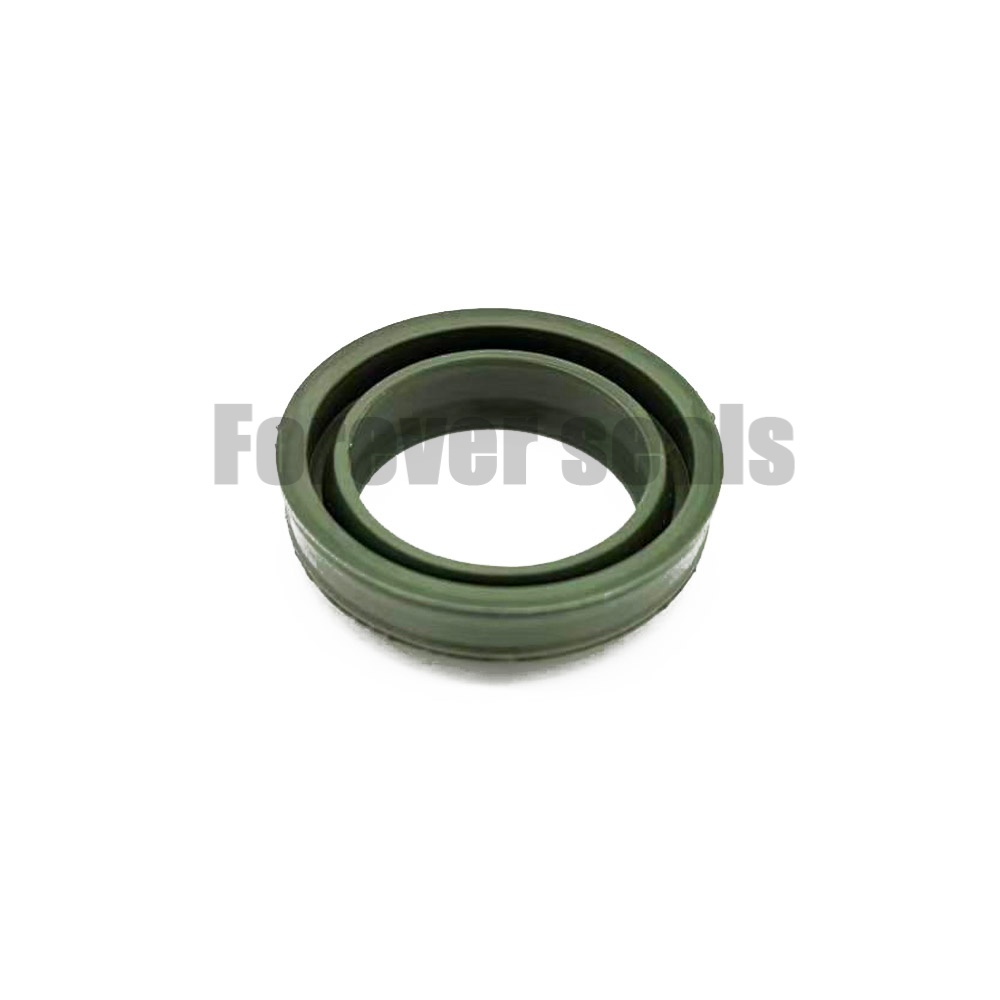

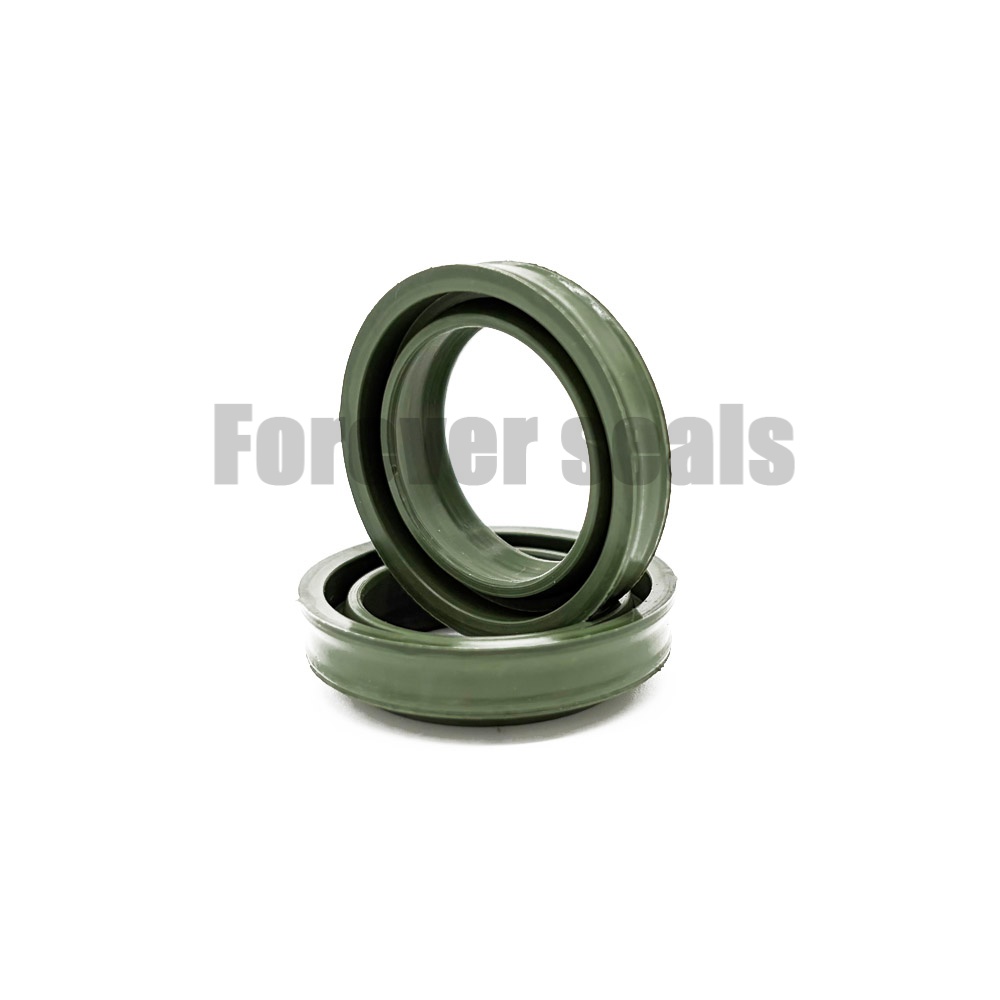

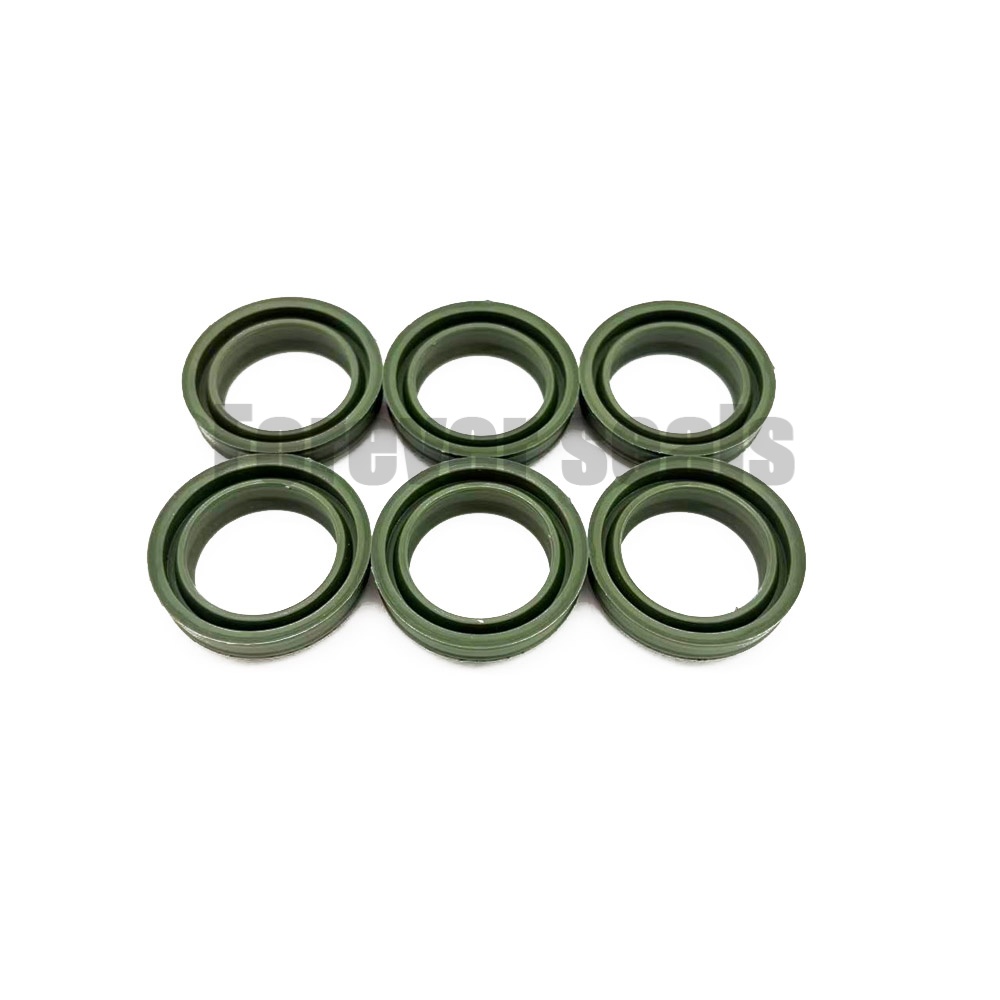

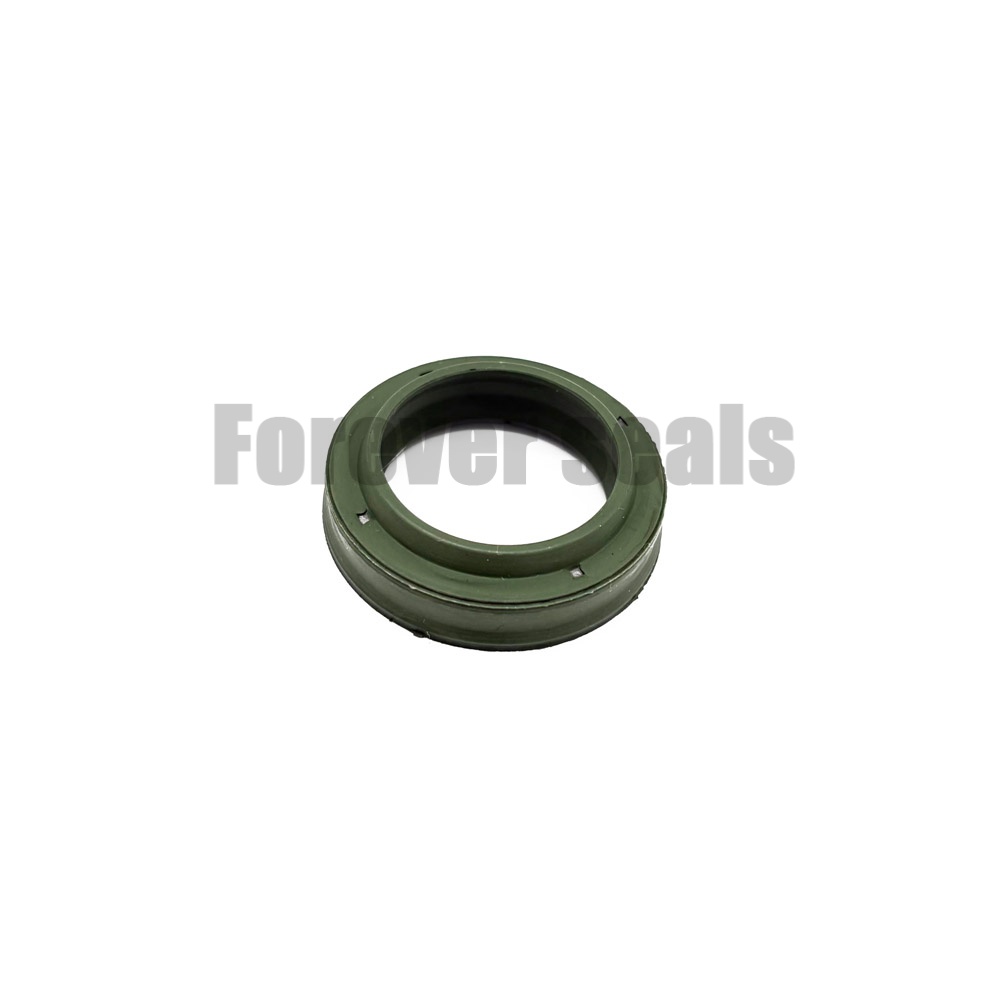

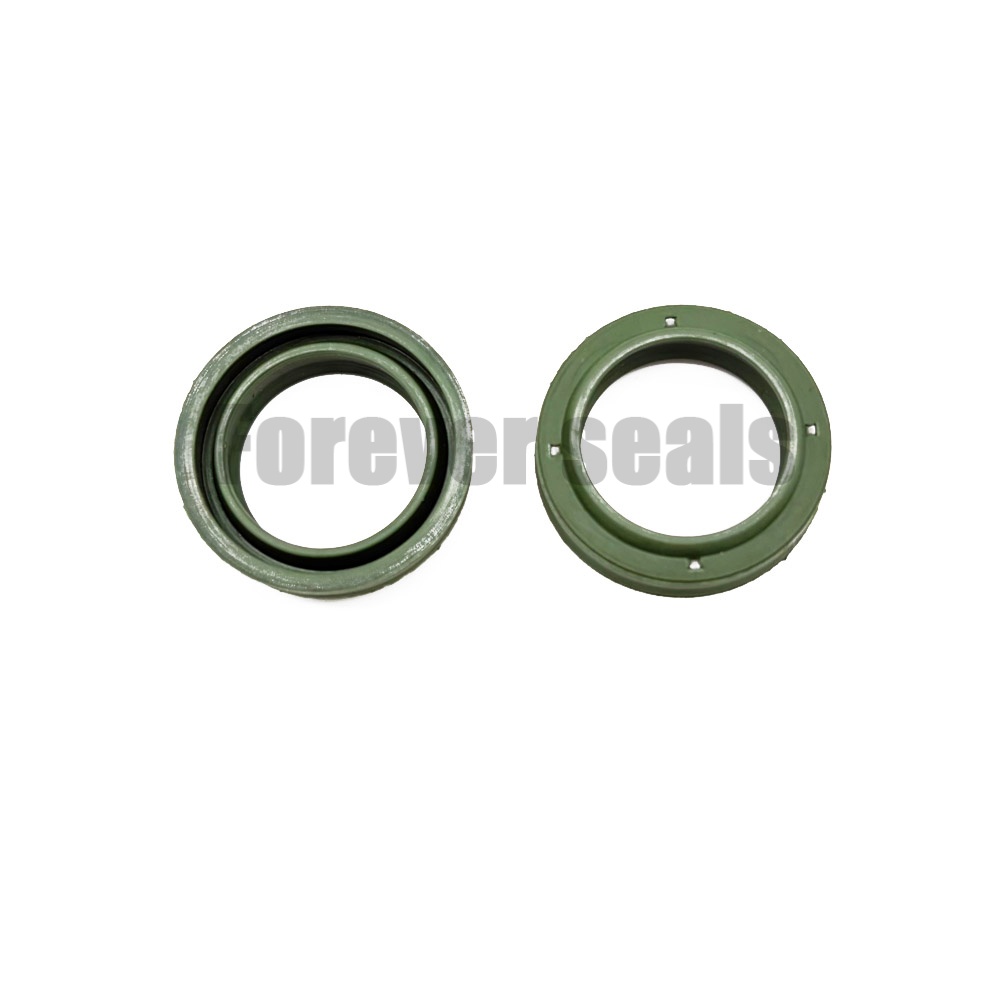

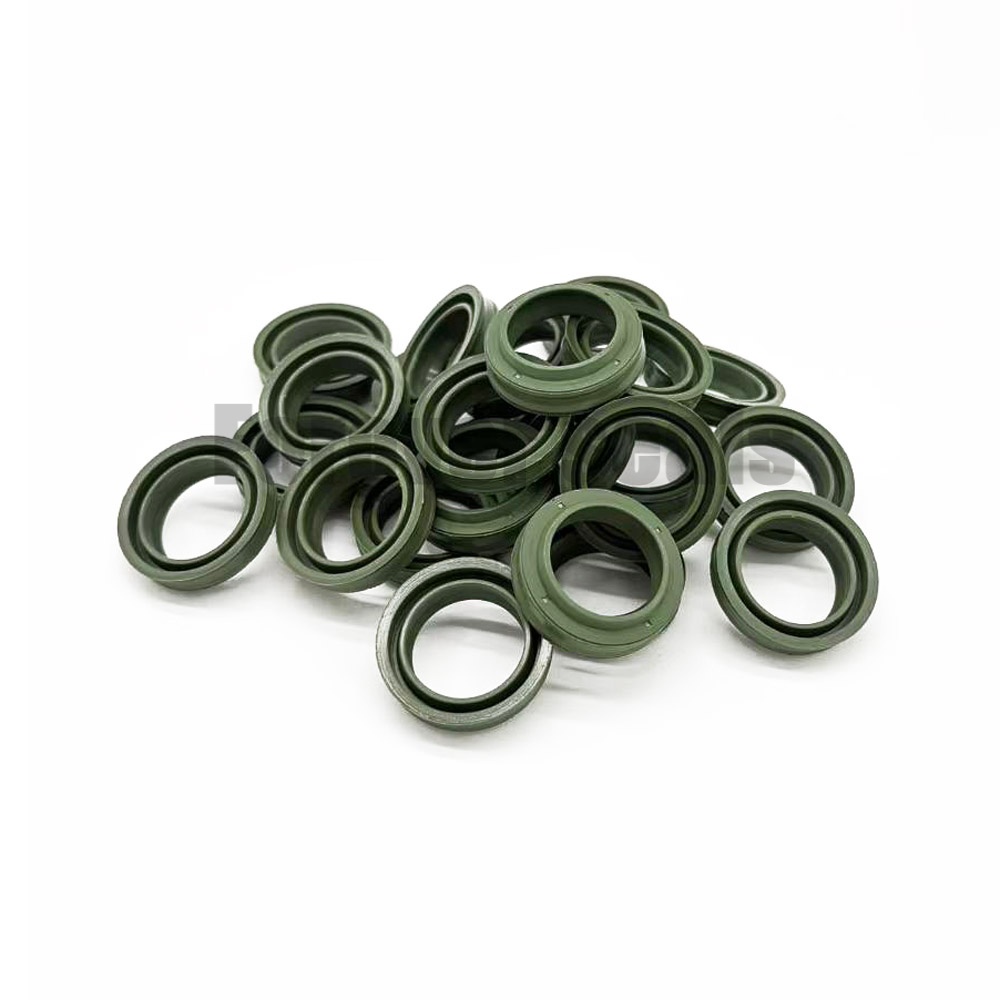

PDR-25 NBR Dust Wiper Seal Standard Pneumatic Rod Seal
- Category: Pneumatic Seal / Cylinder Wiper Seal / Hydraulic & Pneumatic Seals
- Temperature: -30℃ to 120℃ (NBR)；-20℃ to 200℃ (FKM)
- Material: FKM
- Color: Green
- Hardness: 82±3 Shore A
- Product description: PDR-25 is a C-type double lip integrated wiper seal, also known as PDU-25Z. It features dust-proof and air sealing dual functions, specially designed for 25mm piston rod of SC, SU, SAI standard pneumatic cylinders. Standard size 25×33×5.5/7.5mm, stable performance, wear resistance and long service life. Available in NBR and FKM materials for common and high temperature working conditions, fully interchangeable with original standard seals.
1. Product Basic Information
- Product Name: PDR-25 Pneumatic Piston Rod Wiper Seal
- Alias: PDU-25Z, C-type Cap Wiper Seal, Cylinder Double Lip Wiper Seal
- Category: Pneumatic Seal / Cylinder Wiper Seal / Hydraulic & Pneumatic Seals / High Temperature Oil-resistant Seal
- Applicable Equipment: SC/SU/SAI standard pneumatic cylinder with 25mm bore, pneumatic actuator, pneumatic slide table
- Function: The outer lip scrapes dust and water vapor, the inner lip maintains pressure and seals, integrating dust proof and sealing functions to prevent dust from entering the cylinder and damaging internal components.
2.Core Parameters
- Standard Size: 25mm (Inner Diameter d) × 33mm (Outer Diameter D) × 5.5mm (Section Thickness) / 7.5mm (Total Height)
- Applicable Groove: Width 6.0～6.5mm, Depth 7.5～8.0mm; Suitable for 25mm piston rod
- Max Working Pressure: ≤1.6MPa
- Max Reciprocating Speed: ≤1m/s
- Interchangeable Model: PDR-25 = PDU-25Z, can replace old DOP/FC wiper seals of the same specification
3. Installation Notes
- Clean the groove and piston rod before installation, ensuring no burrs, iron chips or other impurities.
- Install in the correct direction, do not turn the lip outward, and do not use sharp tools to pry.
- Do not use forced pressure installation to avoid lip deformation or cracking.
- After assembly, check that there is no skew or edge warping, and the movement is smooth without jamming.
4. Product Description
PDR-25 green wiper seal is made of high-quality FKM, which has better heat resistance, aging resistance and wear resistance than ordinary NBR. It adopts C-type double lip integrated design, integrating dust proof and air sealing functions, specially designed for 25mm piston rod of SC, SU, SAI standard pneumatic cylinders. With standard size 25×33×5.5/7.5mm, stable performance and long service life, it is fully interchangeable with the original standard PDU-25Z seal, suitable for high temperature and heavy load pneumatic cylinder working conditions, widely used in industrial pneumatic equipment.
|
