Rod Seals by FOREVER SEALS
Product details of the rod seals

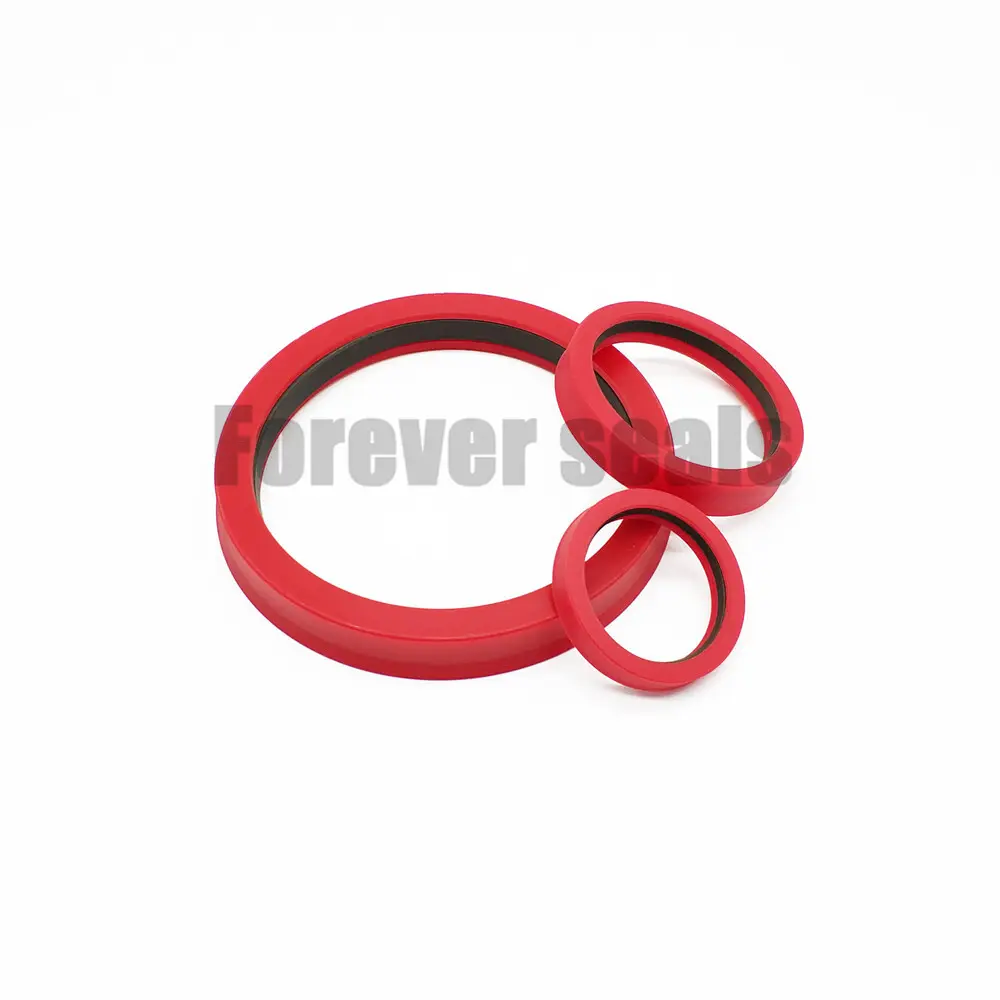

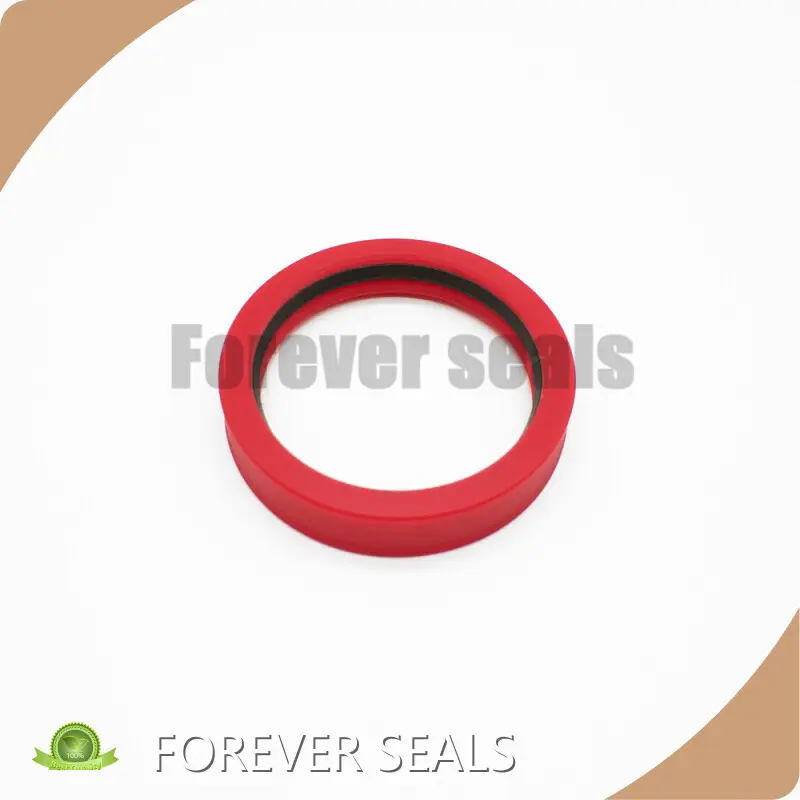

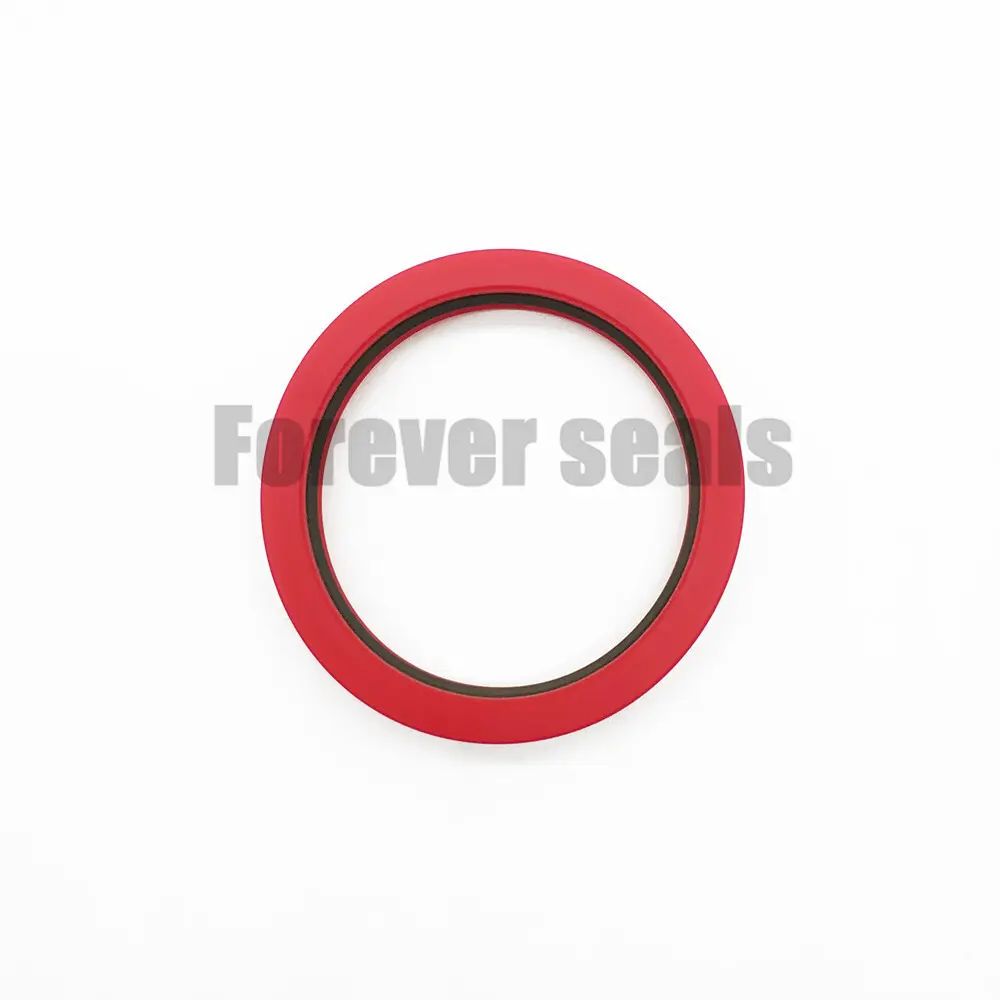

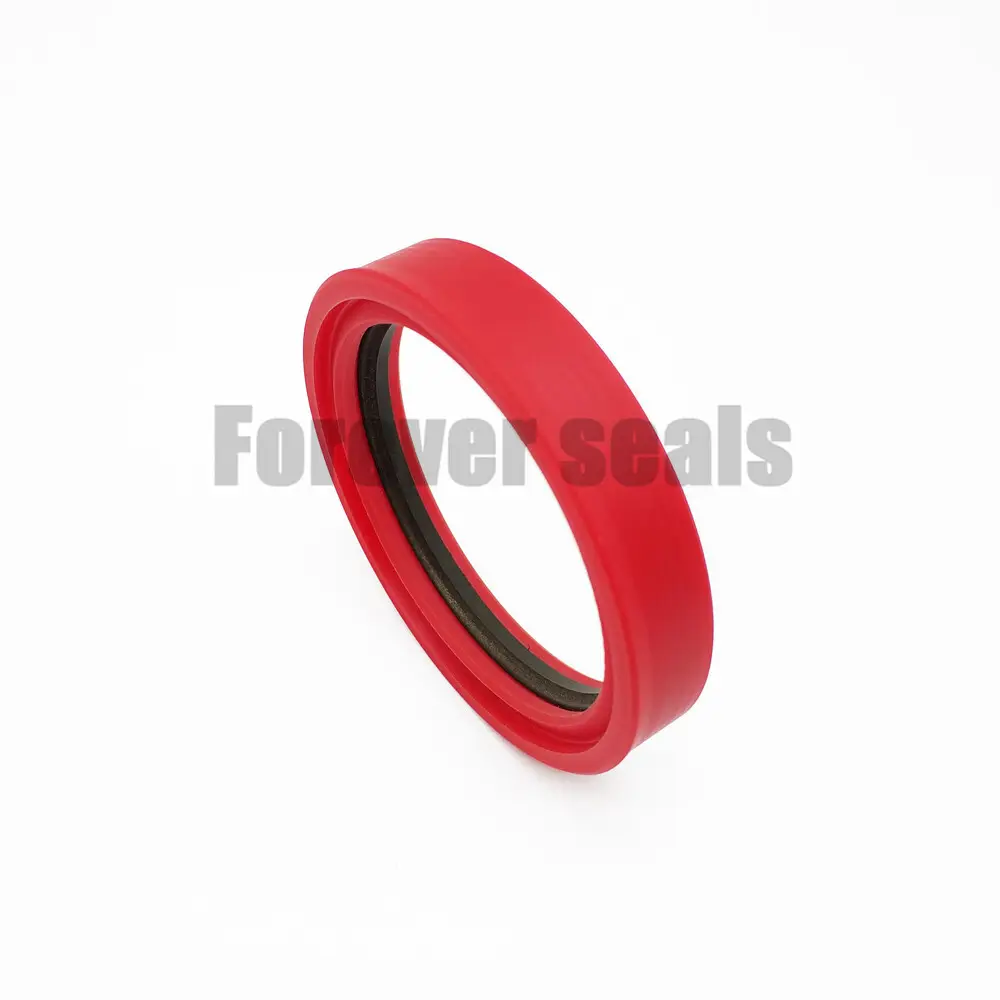

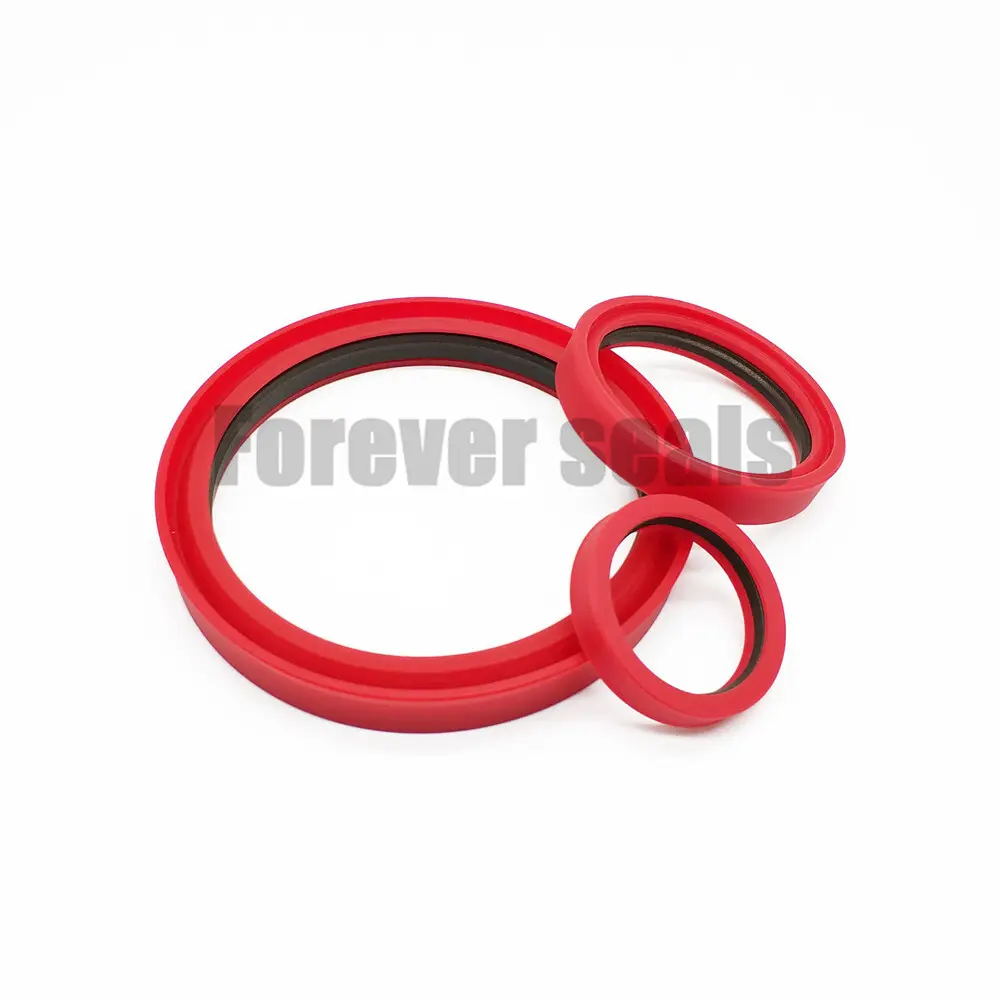

Quick Detail
FOREVER SEALS rod seals is manufactured under a complete and scientific quality management system. This product is durable, cost-effective, well received by customers. The rod seals produced by FOREVER SEALS is very popular in the market and is widely used in industry. More and more customers in the industry are about to choose this product.
Product Introduction
Compared with rod seals of peers, FOREVER SEALS's rod seals has the following advantages.
1. Description
Applicable to high and low speed reciprocating motion environment, a wide range of fluids and high temperature condition. Suitable for larger gap of piston rod. Low friction, simple groove, be able to work in the medium with oil spots.
Meet the standard of GB/T 15242.3.
2. Installation Recommendation
3. Installation Sizes
|
Rod Diameter d e8 |
Groove Diameter D H9 |
Groove Width L D10 |
H |
|
20-30 |
d+8 |
7.5 |
7 |
|
31-35 |
d+8 |
7.5 |
7 |
|
36-44 |
d+8 |
8.5 |
8 |
|
45-55 |
d+10 |
11.0 |
10 |
|
56-119 |
d+15 |
13.0 |
12 |
|
120-319 |
d+20 |
17.0 |
16 |
|
320-499 |
d+30 |
21.0 |
20 |
|
＞499 |
d+40 |
26.5 |
25 |
Sealing ring: filled PTFE
Y-Ring: NBR / PU
5. Working Conditions
|
Working Conditions |
||||
|
Diameter Range |
Pressure Range |
Temperature Range |
Speed |
Medium |
|
20 - 1600mm |
0 - 60MPa |
-30℃ +100℃ |
1 m/s |
Petroleum base hydraulic oil, nonflammable hydraulic fluid, water, and others. |
6. Installation Dimensions
|
Rod Dia. |
Outer Dia. |
Groove Width |
Order No. |
|
d e8 |
D H9 |
L D10 |
|
|
20 22 23 |
28 30 31 |
7.5 7.5 7.5 |
TDI20*28*7.5 TDI22*30*7.5 TDI23*31*7.5 |
|
25 28 30 |
33 36 38 |
7.5 7.5 7.5 |
TDI25*33*7.5 TDI28*36*7.5 TDI30*38*7.5 |
|
32 35 36 |
40 43 44 |
7.5 7.5 8.5 |
TDI32*40*7.5 TDI35*43*7.5 TDI36*44*8.5 |
|
40 42 45 |
48 50 55 |
8.5 8.5 11 |
TDI40*48*8.5 TDI42*50*8.5 TDI45*55*11 |
|
47 48 50 |
57 58 60 |
11 11 11 |
TDI47*57*11 TDI48*58*11 TDI50*60*11 |
|
52 55 56 |
62 65 71 |
11 11 13 |
TDI52*62*11 TDI55*65*11 TDI56*71*13 |
Company Advantages
FOREVER SEALS TECHNOLOGY.,LIMITED has rich experiences in the rod seals industry in China. FOREVER SEALS is a company who stresses the importance of rod seals quality. We give priority to sustainability in the process of our business. We aim to improve our product quality in a sustainable manner and reduce waste as possible.
If you want to purchase our products in bulk, feel free to contact us.
