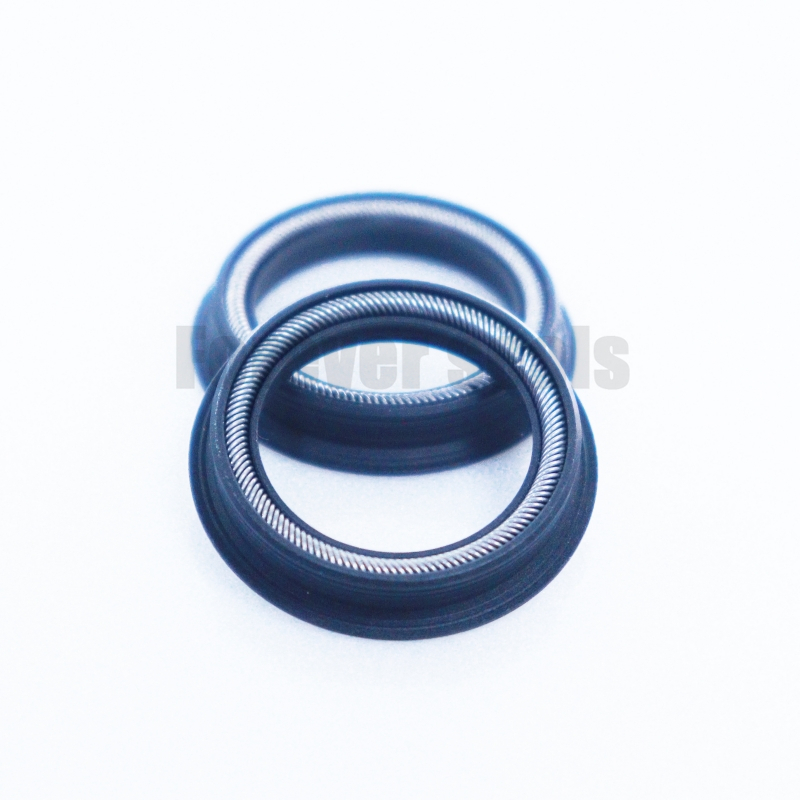

Imported PTFE Spring Energized Seal, Model TVM, Dark Blue
High temperature and chemical resistance, precisely sealed for industrial equipment
The TVM-model Spring Energized Seal is a high-performance sealing solution crafted from imported PTFE material, finished in a sleek dark blue hue. Engineered to excel in demanding industrial environments, it delivers exceptional resistance to high temperatures, corrosive chemicals, and extreme pressure—addressing common pain points of traditional seals like premature wear or leakage.
Its precision-molded structure ensures a tight, consistent fit with both standard and custom equipment components, while the spring-energized design maintains reliable sealing contact even during temperature fluctuations or minor dimensional variations. Widely applicable across hydraulic systems, chemical processing pipelines, and heavy machinery, this seal balances long-term durability with easy installation, making it a cost-effective choice for enhancing equipment efficiency and reducing maintenance downtime.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
- Superior Material Performance: Made of 100% imported PTFE, the seal resists temperatures from -200°C to +260°C, withstands corrosive media (acids, alkalis, solvents), and avoids deformation or wear under high pressure (up to 50MPa).
- Long-Lasting Sealing Reliability: The spring-energized structure maintains tight contact with mating surfaces, even with minor equipment vibrations or dimensional deviations—reducing leakage risk by over 90% compared to traditional O-rings.
- Easy Installation & Compatibility: Precision-molded dimensions (compliant with international industrial standards) ensure a perfect fit for both standard and custom equipment, no need for complex adjustments during assembly.
2. Working Principle
The TVM seal combines two core components: a PTFE sealing jacket and an internal metal spring. When installed in equipment grooves, the spring exerts constant radial force to press the PTFE jacket against the mating surface, forming an initial seal. As the equipment operates (e.g., fluid pressure increases), the medium pressure further energizes the PTFE jacket, enhancing the sealing effect—adapting dynamically to working condition changes.
3. Product Details
- Material: Imported PTFE (food-grade optional for hygiene-sensitive industries) + 316L stainless steel spring (anti-rust, corrosion-resistant).
- Color: Dark blue (custom colors available for brand identification or application-specific needs).
- Model: TVM (full size range: 5mm–200mm inner diameter; custom sizes supported).
- Quality Certification: Complies with ISO 9001, RoHS, and FDA standards—suitable for strict industrial and food/pharmaceutical applications.
4. Application Range
The seal is widely used in industries requiring high-performance sealing:
- Hydraulic & pneumatic systems (cylinders, valves, pumps).
- Chemical processing (reaction vessels, pipelines, mixers).
- Food & pharmaceutical machinery (hygiene-grade sealing to avoid contamination).
- Heavy machinery (construction, mining equipment—resists dust and harsh outdoor conditions).
- Semiconductor manufacturing (resists ultra-pure media and high temperatures).
5. FAQ
Q1: Can the TVM seal replace traditional rubber seals directly?
A1: Yes. Its dimensional design is compatible with most standard seal grooves, enabling direct replacement without modifying equipment structures.
Q2: What is the typical service life of this seal?
A2: Under normal working conditions (25°C, 10MPa, neutral media), the service life exceeds 5,000 operating hours—3x longer than nitrile rubber seals.
Q3: Does Forever Seals provide after-sales support for custom orders?
A3: Absolutely. We offer 1-on-1 technical consultation for custom sizes/materials, and provide a 12-month warranty for all TVM-model seals.
6. Forever Seals’ Selling Points
- 17+ Years of Expertise: We specialize in high-performance industrial seals, with a R&D team that updates products annually to meet evolving industry needs.
- Global Supply Chain: Direct cooperation with top PTFE suppliers ensures consistent material quality, and our 3 global warehouses enable fast delivery (3–7 days for most regions).
- Customization Capability: From material modifications (e.g., adding carbon fiber for wear resistance) to color/logo printing, we tailor solutions to your unique application requirements.
