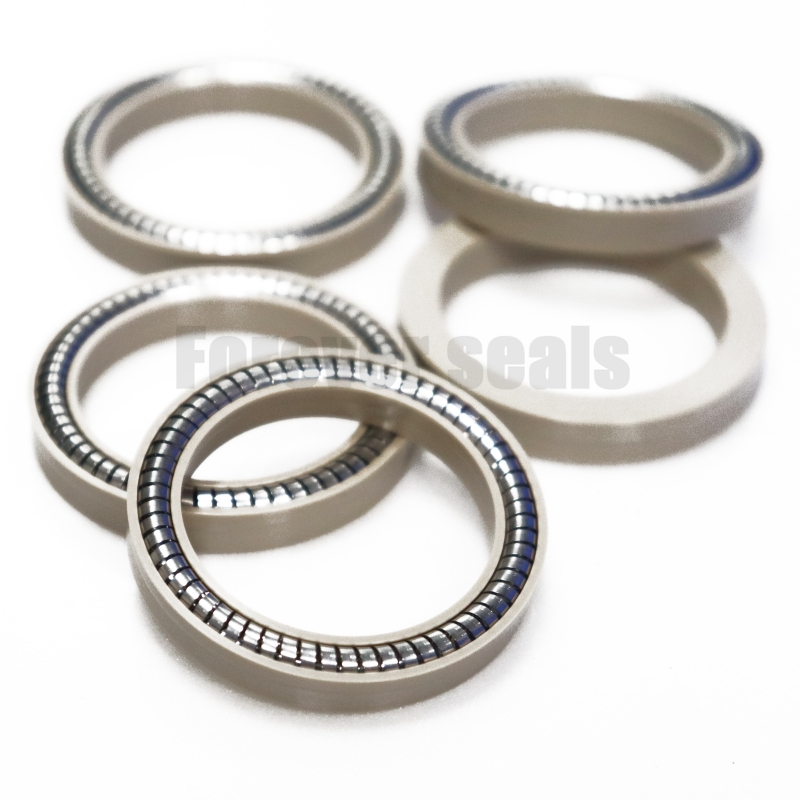

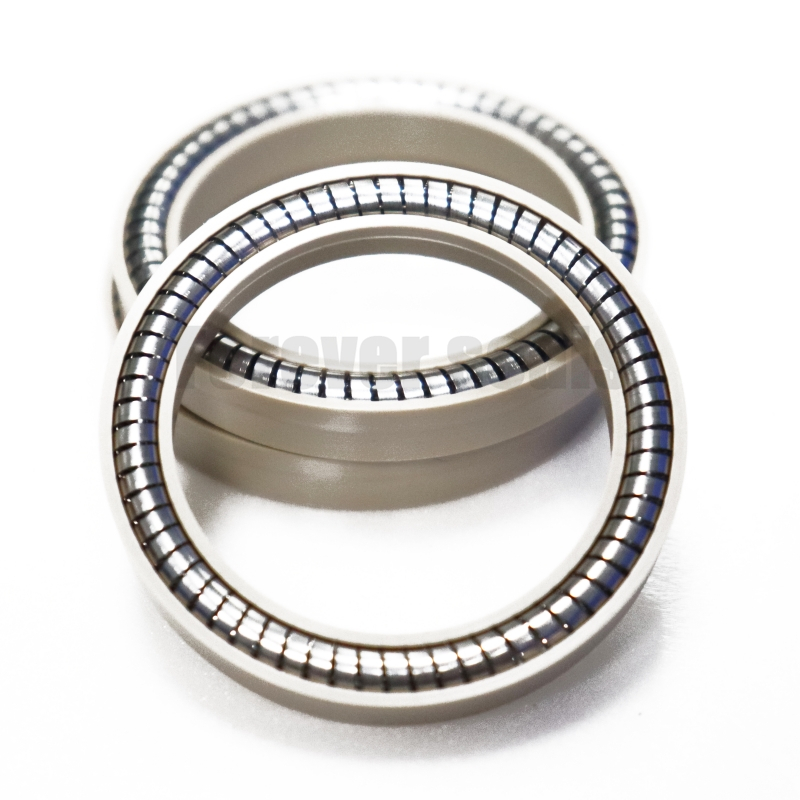

High-Temp PEEK Spring Seals for Extreme Conditions
Spring-Energized PEEK Seals for 260℃ High-Pressure & Chemical Resistance
Engineered with high-performance PEEK material and a spring-energized design, these seals offer superior resistance to continuous temperatures up to 260°C, pressures up to 70MPa, and aggressive chemicals. The self-energizing mechanism ensures reliable sealing across dynamic or static applications, adapting to thermal expansion, wear, and pressure fluctuations for leak-free performance. Ideal for extreme environments in industries like petrochemical, semiconductor, aerospace, and medical devices, they deliver extended service life and reduced maintenance compared to conventional seals.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Product Advantages
Extreme Temperature Resistance: Operates reliably from -180°C to +260°C (peak 315°C), ideal for cryogenic liquids (e.g., LNG) and superheated steam applications.
Superior Pressure Handling: Withstands up to 70MPa (10,000 PSI) static/dynamic pressure, featuring a self-energizing design that tightens sealing force as system pressure increases.
Chemical Immunity: Resistant to most acids, alkalis, solvents, and hydrocarbons (excluding concentrated sulfuric acid), outperforming traditional rubber or PTFE seals in corrosive media.
Longevity & Low Maintenance: PEEK's low friction (coefficient ≤0.15) and wear resistance extend service life up to 10x longer than conventional seals, reducing downtime and replacement costs.
Adaptive Sealing: The built-in V-shaped or helical spring (stainless steel 316/Inconel 718) provides initial preload for zero-pressure sealing and compensates for thermal expansion, misalignment, or surface wear.
Product Details
Materials & Design
Base Material: Virgin PEEK (standard) or filled compounds (30% CF/GF for enhanced rigidity, graphite/PTFE for self-lubrication).
Spring Options: Corrosion-resistant stainless steel (316/304) or high-nickel alloy (Inconel 718) for extreme chemical/high-temperature environments.
Seal Types: Customizable for radial (shaft/piston) or face sealing; compatible with AS568A O-ring grooves for easy retrofitting.
Surface Finish: Polished sealing lips (Ra ≤0.2μm) minimize friction and particle retention, suitable for cleanroom applications.
Applications
Petrochemical & Oil/Gas: High-pressure valves, subsea equipment, reactor seals (resists H₂S, CO₂, and drilling fluids).
Semiconductor & Electronics: Vacuum chambers, plasma etching tools (low outgassing for clean environments).
Aerospace & Defense: Rocket fuel valves, aircraft engine seals (withstands cryogenic fuels and thermal cycling).
Medical & Pharmaceutical: Sterilization autoclaves, surgical robots (biocompatible grades available, ISO 10993 certified).
Energy & Renewables: Hydrogen fuel cells, CSP (concentrated solar power) thermal storage systems.
FAQ
Q1: Can these seals handle rotational motion?
A: Yes! Our graphite/PTFE-filled PEEK variants reduce friction for rotational applications (up to 25m/s linear speed).
Q2: What’s the difference between virgin and filled PEEK?
A: Filled compounds enhance specific properties: CF for stiffness & thermal conductivity, GF for higher heat resistance, and PTFE/graphite for lubricity.
Q3: Are they suitable for food contact?
A: Absolutely. We offer FDA-compliant grades with smooth surfaces to meet strict hygiene standards.
Q4: How to install without damaging the seal?
A: Use a soft mandrel for installation, ensure groove dimensions (AS568A standard) and apply food-grade lubricant to the sealing lips.
Q5: Can you customize sizes for non-standard applications?
A: Yes! We manufacture seals from 1mm ID to 2000mm OD, with rapid prototyping for unique requirements.
Why Choose Us?
Engineering Expertise: 15+ years in high-performance sealing solutions, with in-house material testing labs (ISO 9001:2015 certified).
Global Compliance: Products meet RoHS, REACH, and industry-specific standards (e.g., API 6A for oil/gas).
Rapid Turnaround: Stocked materials for quick delivery; custom designs finalized in 7-10 business days.
Tailored Solutions: Dedicated R&D team to optimize seal geometry, material formulation, and spring force for your exact operating conditions.
Contact us today to request a sample or discuss your extreme-sealing challenge!
