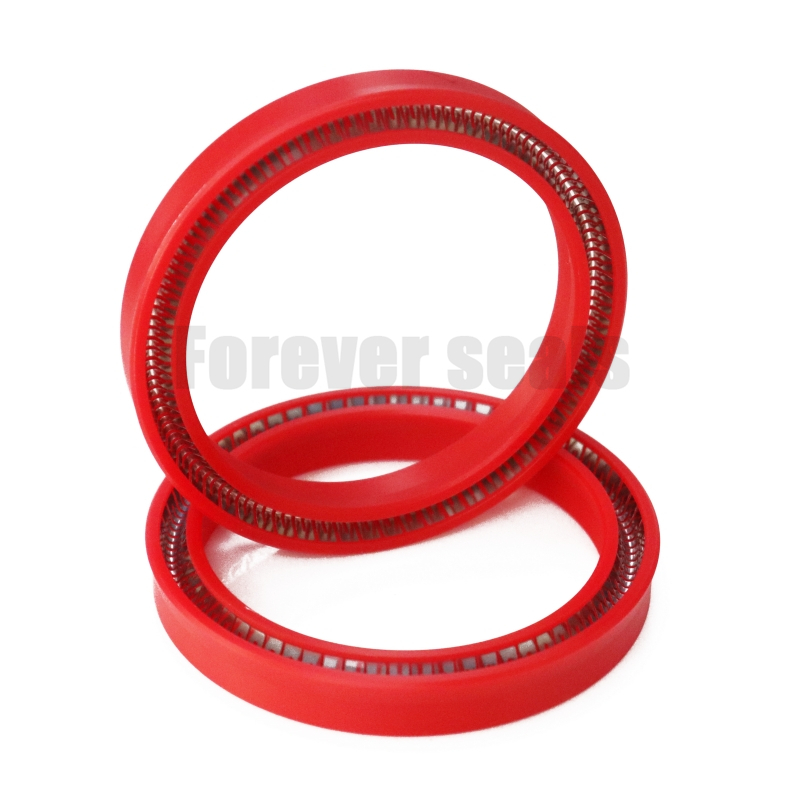

High - Performance Polyurethane Spring Energized Seals
An Introduction to the Structure and Application of Premium Polyurethane Spring Energized Seals
These are high - performance polyurethane spring energized seals. Crafted from top - grade polyurethane, they showcase remarkable wear resistance, elasticity, and resistance to various chemicals, enabling them to withstand harsh operating environments. The ingeniously integrated spring energizing mechanism plays a crucial role, guaranteeing reliable sealing performance even when faced with fluctuating pressure and temperature conditions.
Suitable for an extensive array of applications, spanning from hydraulic systems in heavy machinery to precision industrial equipment, these seals offer efficient and long - lasting sealing. By minimizing leakage effectively, they not only enhance the operational efficiency of the equipment but also significantly extend its service life, making them a dependable choice for industries that demand high - performance sealing solutions.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
Forever Seals’ polyurethane spring energized seals stand out with a suite of industry-leading advantages. Crafted from premium-grade polyurethane, they deliver exceptional wear resistance—outperforming standard seals by up to 30% in high-friction applications—ensuring long-term durability even in harsh operating environments. The material also boasts excellent elasticity and chemical resistance, withstanding exposure to oils, solvents, and mild corrosives without degradation. Additionally, the spring-energized design guarantees consistent sealing pressure, eliminating leakage risks even when facing temperature fluctuations (-40°C to 120°C) or minor surface irregularities on mating components, making them a reliable choice for critical systems.
2. Working Principle
The core working principle of Forever Seals’ polyurethane spring energized seals combines the flexibility of polyurethane with the mechanical force of an integrated spring. When installed in a sealing groove, the pre-compressed spring exerts a constant radial or axial force on the polyurethane seal lip, pressing it tightly against the mating surface to form an initial seal. As system pressure increases, the fluid pressure further energizes the seal—pushing the polyurethane lip more firmly against the mating surface, enhancing the sealing effect. This dual-energization (spring + fluid pressure) design ensures that the seal maintains optimal performance across a wide range of pressure conditions (from vacuum to 50 MPa), preventing leakage and adapting to dynamic changes in the system,
such as vibration or component movement.
3. Product Details
Material Specifications: The polyurethane matrix features a Shore hardness of 85-90 A, balancing flexibility for sealing and rigidity for structural stability; the internal spring is made of 316 stainless steel, offering superior corrosion resistance and fatigue strength, ensuring over 10,000 cycles of reliable operation.
Dimensional Precision: Manufactured using CNC molding technology, the seals adhere to tight tolerances (±0.02 mm for critical dimensions), ensuring seamless compatibility with standard and custom groove designs. Available in inner diameters ranging from 10 mm to 500 mm, with seal lip heights of 2 mm-8 mm to suit different application needs.
Surface Treatment: The polyurethane surface undergoes a special polishing process, reducing friction coefficient to 0.15 (dry condition) and minimizing wear during dynamic operation. The spring is passivated to enhance rust resistance, extending the seal’s service life in humid or outdoor environments.
4. Application Range
Forever Seals’ polyurethane spring energized seals are versatile across multiple industries and scenarios, including:
Hydraulic & Pneumatic Systems: Ideal for hydraulic cylinders, pneumatic actuators, and valves in construction machinery (e.g., excavators, loaders) and industrial automation equipment, where they withstand high pressure and frequent motion.
Automotive Industry: Used in transmission systems, brake calipers, and engine oil seals, resisting high temperatures and automotive fluids (engine oil, brake fluid).
Food & Pharmaceutical Machinery: Compliant with FDA-grade polyurethane options, suitable for sealing in food processing equipment (e.g., filling machines) and pharmaceutical reactors, ensuring no contamination of products.
Energy Sector: Applied in oil and gas wellhead equipment, wind turbine hydraulic systems, and solar panel manufacturing machinery, enduring extreme
temperatures and harsh media.
5. FAQ
Q1: What is the maximum temperature range the seal can withstand?
A1: Our standard polyurethane spring energized seals operate reliably between -40°C and 120°C. For high-temperature applications (up to 150°C), we offer a specialized high-temperature polyurethane variant—contact our sales team for customization.
Q2: How often should the seals be replaced?
A2: Under normal operating conditions (proper installation, compatible media, and within pressure/temperature limits), the seals have a service life of 2-3 years. We recommend regular inspection (every 6 months) for signs of wear, such as cracks or lip deformation, to avoid unexpected leakage.
Q3: Can the seals be customized for non-standard groove sizes?
A3: Yes! Forever Seals provides full customization services. Simply share your groove dimensions, operating parameters (pressure, temperature, media), and application requirements, and our engineering team will design and produce tailored seals within 7-10 business days.
6. Enterprise Selling Points
As a leading seal manufacturer with 15 years of experience, Forever Seals differentiates itself through three core strengths:
R&D Capability: Our in-house R&D team (10+ engineers) continuously innovates material formulas and seal designs, holding 8 patents for high-performance sealing solutions. We also collaborate with local universities to develop next-generation polyurethane materials for extreme environments.
Quality Assurance: Every seal undergoes 100% quality inspection—including dimensional testing, material performance testing, and leak testing—before leaving the factory. We are ISO 9001 and IATF 16949 certified, ensuring consistent quality across all production batches.
Customer Support: We offer end-to-end customer service, including pre-sales technical consultation (helping customers select the right seal model), on-site installation guidance, and after-sales troubleshooting. Our global logistics network ensures fast delivery—standard products ship within 24 hours, and customized orders arrive within 2 weeks for most regions.
