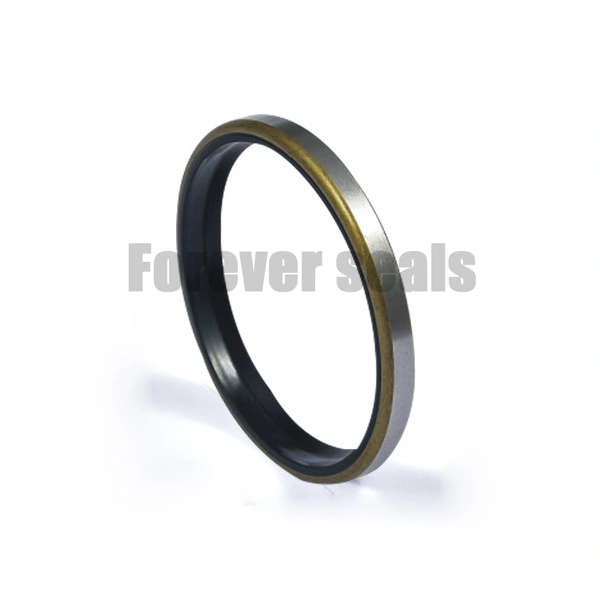

GA wiper seal

  • Category: Wiper seals
  • Temperature: -35 - +100℃
  • Material: NBR, Metal
  • Color: black
  • Medium: Hydraulic oil
  • Product description:GA wiper seal from Forever Seals is a kind of scraper seals. It often used together with other sealing components to let a ram rod pass through the inner bore of a seal for preventing leakage. GA wip

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data

    1. Description

    GA wiper seal from Forever Seals is a kind of scraper seals.  It often used together with other sealing components to let a ram rod pass through the inner bore of a seal for preventing leakage. GA wiper seal is extremely important in ensuring that outside contaminants are kept out of hydraulic operating systems. By keeping everything from dirt to moisture outside of the system, scraper seals prevent any damage to rods, cylinder walls, seals and other important elements of the system.

    2. Installation Recommendation

    GA wiper seal 4

    3. Standard materials

    NBR, FKM

    4. Installation Dimensions

    d

    D

    H

    H2

    Order No.

    20

    30

    7

    10

    GA20*30*7/10

    25

    35

    7

    10

    GA25*35*7/10

    30

    40

    7

    10

    GA30*40*7/10

    40

    50

    7

    10

    GA40*50*7/10

    45

    55

    7

    10

    GA45*55*7/10

    50

    60

    7

    10

    GA50*60*7/10

    55

    65

    7

    10

    GA55*65*7/10

    60

    70

    7

    10

    GA60*70*7/10

    65

    75

    7

    10

    GA65*75*7/10

    70

    80

    7

    10

    GA70*80*7/10

    75

    85

    7

    10

    GA75*85*7/10

    80

    90

    7

    10

    GA80*90*7/10

    85

    95

    7

    10

    GA85*95*7/10

    90

    100

    7

    10

    GA90*100*7/10

    95

    105

    7

    10

    GA95*105*7/10

    100

    110

    7

    10

    GA100*110*7/10

    105

    115

    7

    10

    GA105*115*7/10

    110

    120

    7

    10

    GA110*120*7/10

    115

    125

    7

    10

    GA115*125*7/10

    120

    130

    7

    10

    GA120*130*7/10

    125

    140

    9

    12

    GA125*140*9/12

    130

    140

    7

    10

    GA130*140*7/10

    140

    155

    9

    12

    GA140*155*9/12

    150

    165

    9

    12

    GA150*165*9/12

    160

    175

    9

    12

    GA160*175*9/12

    170

    185

    9

    12

    GA170*185*9/12

    180

    195

    9

    12

    GA180*195*9/12

    200

    215

    9

    12

    GA200*215*9/12

    About more dimensions, you can download it through below link.

    http://www.foreverseals.com/download.html
