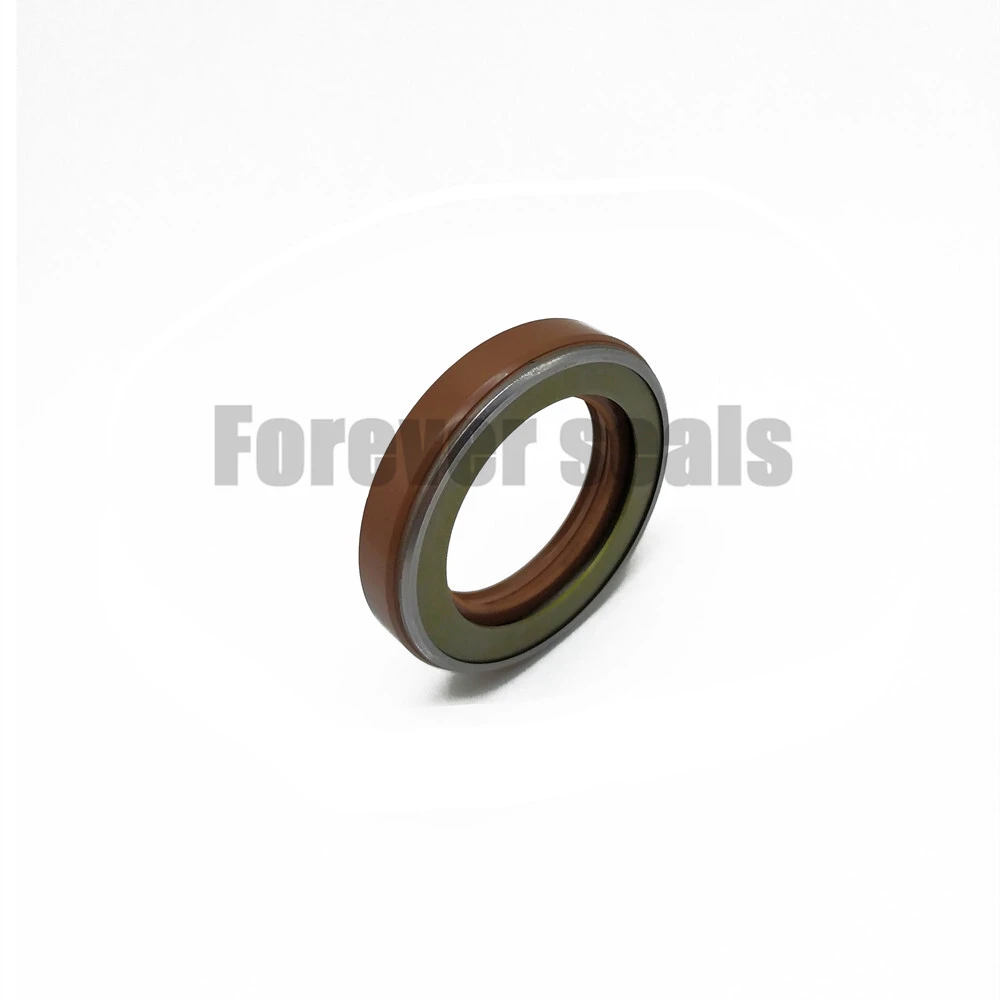

FKM TCN pressure resistant oil seal
- Category： Oil seals
- Temperature: -20 - +200℃
- Material: FKM
- Color: brown
- Pressure: 0.3MPa
- Product description：FKM TCN pressure resistant oil seal
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Description
TCN is pressure- resistant oil seal with an auxiliary cage to minimize lip deformation under pressure. Used for high-pressure rotating shafts.
2. Standard materials
NBR, FKM
3. Installation Dimensions
| Inner Diam. | Outer Diam. | Height | Part No. | Order No. |
| 17 | 35 | 8 | AP0760 | TCN17*35*8 |
| 20 | 35 | 8 | AP1013E | TCN20*35*8 |
| 20 | 40 | 11 | AP1033I | TCN20*40*11 |
| 22 | 42 | 10 | AP1147F | TCN22*42*10 |
| 22 | 42 | 11 | AP1148F | TCN22*42*11 |
| 24 | 40 | 8 | AP1260E | TCN24*40*8 |
| 25 | 45 | 11 | AP1338F | TCN25*45*11 |
| 28 | 48 | 11 | AP1563J | TCN28*48*11 |
| 30 | 42 | 7 | AP1665E | TCN30*42*7 |
| 30 | 50 | 11 | AP1709H | TCN30*50*11 |
| 32 | 52 | 11 | AP1904F | TCN32*52*11 |
| 34 | 54 | 11 | AP1978G | TCN34*54*11 |
| 35 | 55 | 11 | AP2085G | TCN35*55*11 |
| 35 | 55 | 11 | AP2085A | TCN35*55*11 |
| 35 | 55 | 12 | AP2086F | TCN35*55*12 |
| 35 | 55 | 9 | AP2083G | TCN35*55*9 |
| 38 | 58 | 11 | AP2240G | TCN38*58*11 |
| 40 | 62 | 11 | AP2388E | TCN40*62*11 |
| 40 | 60 | 12 | AP2379F | TCN40*60*12 |
| 40 | 62 | 12 | AP2390Q | TCN40*62*12 |
| 42 | 65 | 12 | AP2507H | TCN42*65*12 |
| 45 | 65 | 12 | AP2659E | TCN45*65*12 |
| 45 | 68 | 12 | AP2668G | TCN45*68*12 |
| 48 | 62 | 9 | AP2775G | TCN48*62*9 |
| 48 | 70 | 12 | AP2791G | TCN48*70*12 |
| 50 | 72 | 12 | AP2864I | TCN50*72*12 |
| 52 | 75 | 12 | AP2967J | TCN52*75*12 |
| 52 | 75 | 9/3 | AP2965E | TCN52*75*9/3 |
| 55 | 78 | 12 | AP3055F | TCN55*78*12 |
| 58 | 80 | 12 | AP3154H | TCN58*80*12 |
| 60 | 82 | 12 | AP3222B | TCN60*82*12 |
| 62 | 85 | 12 | AP3297G | TCN62*85*12 |
| 65 | 90 | 13 | AP3409F | TCN65*90*13 |
| 68 | 90 | 14 | AP3461E | TCN68*90*14 |
| 70 | 95 | 13 | AP3527B | TCN70*95*13 |
| 75 | 100 | 13 | AP3618G | TCN75*100*13 |
| 80 | 105 | 13 | AP3744K | TCN80*105*13 |
| 85 | 110 | 13 | AP3842H | TCN85*110*13 |
| 90 | 115 | 13 | AP3932B | TCN90*115*13 |
| 95 | 120 | 13 | AP3994B | TCN95*120*13 |
| 100 | 125 | 13 | AP4063B | TCN100*125*13 |
| 105 | 135 | 14 | AP4153H | TCN105*135*14 |
| 110 | 140 | 14 | AP4212B | TCN110*140*14 |
| 115 | 145 | 14 | AP4282G | TCN115*145*14 |
| 120 | 150 | 14 | AP4346B | TCN120*150*14 |
| 125 | 155 | 14 | AP4399E | TCN125*155*14 |
| 130 | 160 | 14 | AP4451G | TCN130*160*14 |
| 135 | 165 | 14 | AP4498E | TCN135*165*14 |
| 140 | 170 | 14 | AP4542F | TCN140*170*14 |
| 145 | 175 | 14 | AP4581G | TCN145*175*14 |
| 150 | 180 | 14 | AP4624G | TCN150*180*14 |
| 160 | 190 | 16 | AP4713G | TCN160*190*16 |
| 170 | 200 | 16 | AP4795F | TCN170*200*16 |
| 35 | 60 | 15 | AP4561E | TCN35*60*15 |
| 44.45 | 63.55 | 9.5 | UP0445E | TCN44.45*63.55*9.5 |
| 34.925 | 57.15 | 8.85 | UP0449E | TCN34.925*57.15*8.85 |
| 33.34 | 72.39 | 9.5 | UP0450E | TCN33.34*72.39*9.5 |
| 38.15 | 57.15 | 9.5 | UP0234E | TCN38.15*57.15*9.5 |
4. Product Catalog
You can download catalog through below link.
http://www.foreverseals.com/download.html
