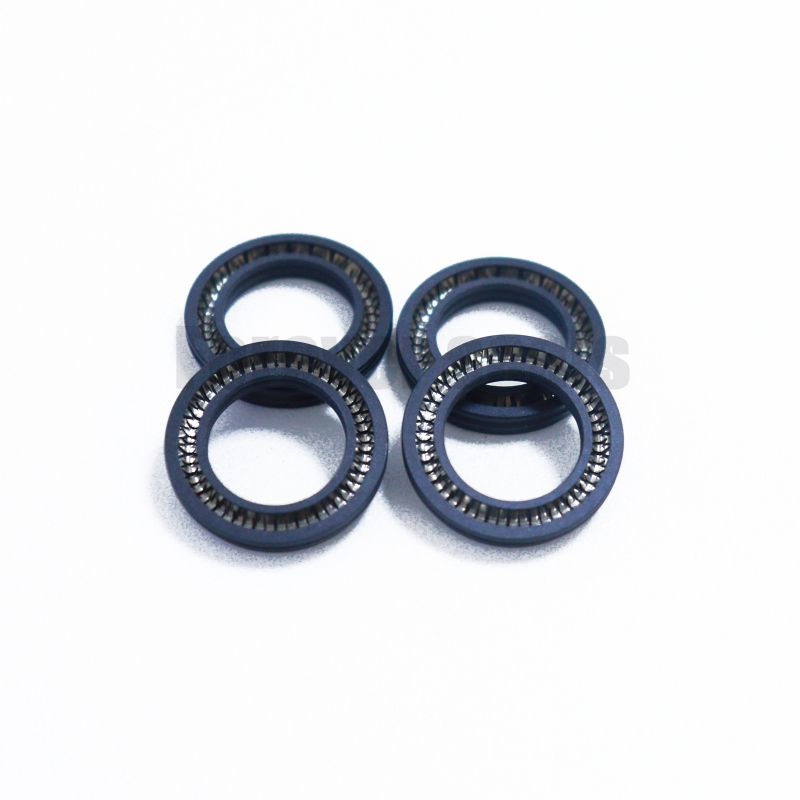

Dark Blue PTFE Spring Energized Seals
High-Performance Dark Blue PTFE Spring Energized Seals for Precision Sealing Applications
These dark blue PTFE spring energized seals are engineered for superior sealing performance. Crafted from high - quality PTFE, they exhibit exceptional chemical resistance, enabling them to withstand a wide range of corrosive media. The spring energization ensures reliable sealing even under low - pressure or fluctuating conditions, enhancing their durability and longevity. Suitable for various precision sealing applications across industries like fluid handling, automotive, and aerospace, these seals provide a robust solution for maintaining leak - free operations in critical systems.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
Forever Seals’ dark blue PTFE spring energized seals stand out for their all-around performance in demanding environments. First, the premium PTFE material delivers superior chemical inertness, resisting most acids, alkalis, solvents, and industrial oils—eliminating degradation risks even in aggressive fluid systems. Second, their temperature tolerance (-200°C to +260°C) makes them suitable for both cryogenic and high-heat applications, outperforming traditional rubber or plastic seals. The spring-energized structure adds another layer of reliability: it maintains consistent contact pressure with sealing surfaces, even under low-pressure conditions or minor groove wear, ensuring long-term leak-proof operation. Plus, the dark blue color offers easy visual inspection—simplifying maintenance checks for wear or misalignment.
2. Working Principle
This seal combines the flexibility of a metal spring with the chemical stability of PTFE to achieve optimal sealing. At rest, the embedded stainless steel spring (standard 304; 316L optional for corrosion resistance) exerts constant preload, pressing the PTFE seal’s lip tightly against the mating surface to form an initial seal. When the system is pressurized, fluid pressure acts on the PTFE seal’s inner cavity, “energizing” the lip to expand outward—strengthening contact with the sealing surface and blocking leaks. For dynamic applications (e.g., piston rods), the low-friction PTFE surface reduces drag, while the spring compensates for lip wear over time, extending the seal’s functional life.
3. Product Details
| Specification | Details |
|---|---|
| Core Material | High-purity PTFE (polytetrafluoroethylene), density: 2.1–2.3 g/cm³ |
| Spring Material | Standard: 304 stainless steel; Optional: 316L stainless steel |
| Color | Opaque dark blue (uniform pigment dispersion, no fading under UV exposure) |
| Dimensional Accuracy | Compliant with ISO 3601-1; Tolerance: ±0.02mm for inner/outer diameter |
| Hardness | Shore D 55–65 (balances flexibility and wear resistance) |
4. Application Range
These seals are engineered to solve sealing challenges across key industries:
- Chemical Processing: Valves, pumps, and reactors handling corrosive media (e.g., sulfuric acid, methanol).
- Medical & Pharmaceutical: Fluid transfer systems for drugs or lab equipment (non-toxic, easy to sterilize).
- Automotive & EV: Battery cooling loops, brake systems, and transmission housings (resists brake fluid and battery electrolytes).
- Oil & Gas: Downhole tools and wellhead equipment (tolerates high pressure up to 50 MPa and crude oil contaminants).
- Renewable Energy: Wind turbine hydraulic systems and solar panel cooling circuits (withstands outdoor temperature fluctuations).
5. FAQ
Q1: Can this seal be used in dynamic applications (e.g., moving piston rods)?
A1: Yes. The low-friction PTFE surface (coefficient of friction: 0.05–0.1) minimizes wear on both the seal and mating parts, making it ideal for reciprocating or rotating dynamic systems.
Q2: How do I store these seals to maintain their performance?
A2: Store them in a cool, dry environment (10–25°C, relative humidity <60%) away from direct sunlight, oils, and sharp objects. Unopened packages have a 24-month shelf life.
Q3: Does Forever Seals offer samples for testing before bulk orders?
A3: Absolutely. We provide free 2–5 piece samples for compatibility testing (you only cover shipping costs). Samples are shipped within 2 business days of request.
6. Company Selling Points (Forever Seals)
- Precision Manufacturing: Our seals are produced in a Class 1000 cleanroom with automated CNC machines, ensuring zero contamination and consistent quality.
- Tailored Solutions: Beyond standard sizes, we offer custom designs (e.g., modified seal lips, special spring materials) to meet unique application needs—with dedicated engineers for technical consultation.
- Reliable Delivery: With 4 regional distribution centers (USA, Germany, China, Brazil), we ensure 1–3 day delivery for standard products and 7–10 days for custom orders globally.
- After-Sales Support: We provide a 12-month warranty for all products. If you encounter performance issues, our technical team will assist with troubleshooting or replacement within 48 hours.
