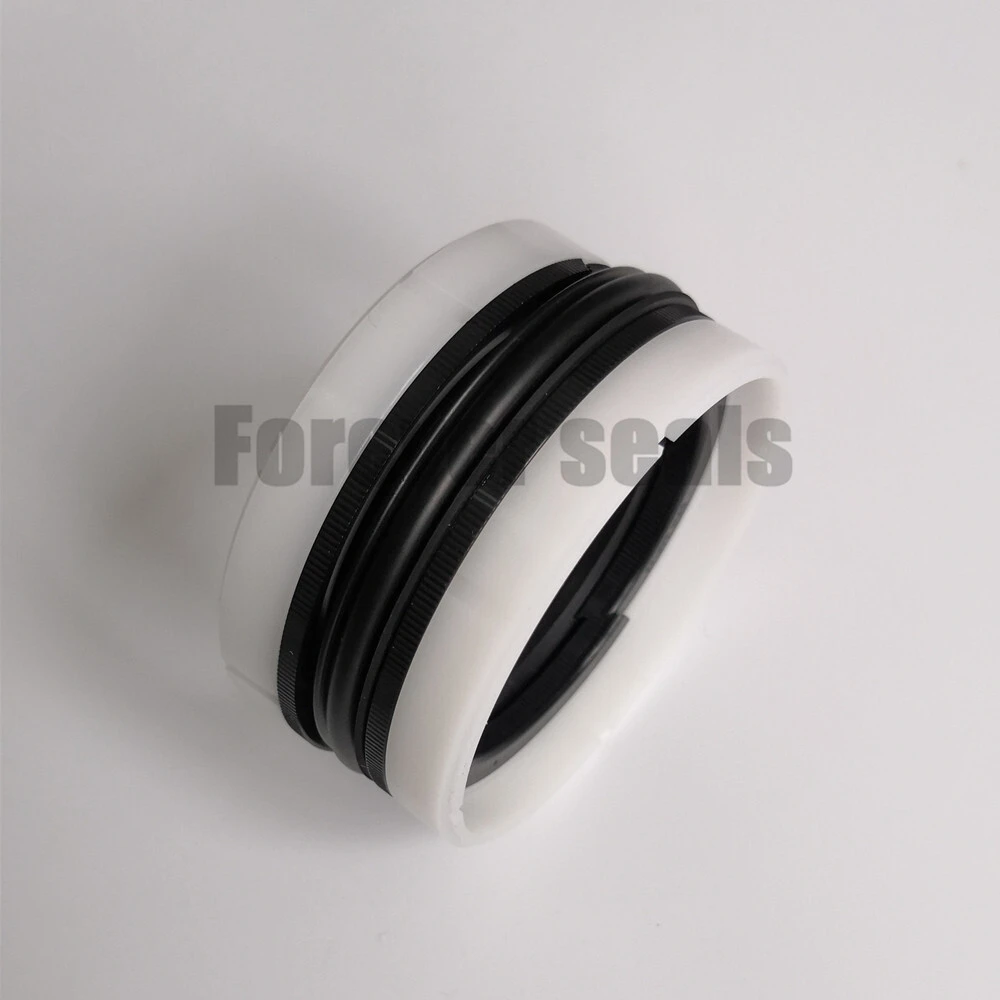

Piston compact seal TPM/DBM/DAS/KDAS with 5pcs

  • Category: Piston seals
  • Temperature: -30 - +110℃
  • Material: NBR+TPE+POM
  • Color: White, black
  • Medium: Hydraulic oils
  • Product description:Piston compact seal TPM/DBM/DAS/KDAS with 5pcs

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data

    1. Installation Recommendation

    Piston compact seal TPM/DBM/DAS/KDAS with 5pcs 8

    2. Application and properties

    TPM/DBM is a double acting sealing and guiding element, Consisting of an elastomer, two back-up rings and two guide rings. Dynamic and static properties of the elastomer play a good sealing role, The back-up ring prevents the elastomer from being squeezed into the sealing gap, the function of the guide ring is to guide the piston in the cylinder and absorb the radial force. The sealing is mainly used for piston and hydraulic cylinder, such as bulldozers, excavators, loaders, hydraulic gates and agricultural machinery.

    3. Standard materials

    Guide ring: POM

    Back-up ring: TPU polymer

    Elastomer: NBR

    4. Working Conditions

    Working  Conditions

    Diameter Range

    Pressure Range

    Temperature Range

    Speed

    Medium

    20-250mm

    0-35MPa

    -30℃ +120℃

    0.5 m/s

    petroleum base hydraulic oilnonflammable hydraulic oil, environmental protection hydraulic oil


    5. Installation Dimensions

    Cylinder Dia.

    Groove Size

    Order No.

    DN H9

    d1

    L1 +0.2

    d2 h9

    d3 h11

    L2 +0.1

    20

    22

    25

    11

    13

    15

    13.5

    13.5

    12

    17

    19

    21

    19

    21

    23

    2.1

    2.1

    4

    TPM20*11*13.5*2.1

    TPM22*13*13.5*2.1

    TPM25*15*12*4

    25

    25

    25

    15

    15

    16

    12.5

    16.4

    13.5

    22

    21.45

    22

    24

    23.5

    24

    4

    6.35

    2.1

    TPM25*15*12.5*4

    TPM25*15*16.4*6.35

    TPM25*16*13.5*2.1

    28

    30

    30

    19

    17

    21

    13.5

    15.4

    13.5

    25

    26.5

    27

    27

    28.5

    29

    2.1

    6.35

    2.1

    TPM28*19*13.5*2.1

    TPM30*17*15.4*6.35

    TPM30*21*13.5*2.1

    32

    32

    35

    22

    22

    25

    15.5

    16.4

    15.5

    28

    28.5

    31

    31

    30.5

    34

    2.6

    6.35

    2.6

    TPM32*22*15.5*2.6

    TPM32*22*16.4*6.35

    TPM35*25*15.5*2.6

    35

    40

    40

    25

    24

    26

    16.4

    18.4

    15.5

    31.4

    35.4

    36

    33.5

    38.5

    39

    6.35

    6.35

    2.6

    TPM35*25*16.4*6.35

    TPM40*24*18.4*6.35

    TPM40*26*15.5*2.6

    40

    40

    40

    30

    30

    30

    12.5

    12.5

    16.4

    36

    37

    35.4

    38

    39

    38.5

    4

    4

    6.35

    TPM40*30*12.5*4

    TPM40*30*12.5*4

    TPM40*30*16.4*6.35

    42

    45

    45

    28

    29

    31

    15.5

    18.4

    15.5

    38

    40.4

    41

    41

    43.5

    44

    2.6

    6.35

    2.6

    TPM42*28*15.5*2.6

    TPM45*29*18.4*6.35

    TPM45*31*15.5*2.6

    45

    50

    50

    35

    34

    34

    16.4

    18.4

    20.5

    40.4

    45.4

    46

    43.5

    48.5

    49

    6.35

    6.35

    3.1

    TPM45*35*16.4*6.35

    TPM50*34*18.4*6.35

    TPM50*34*20.5*3.1
