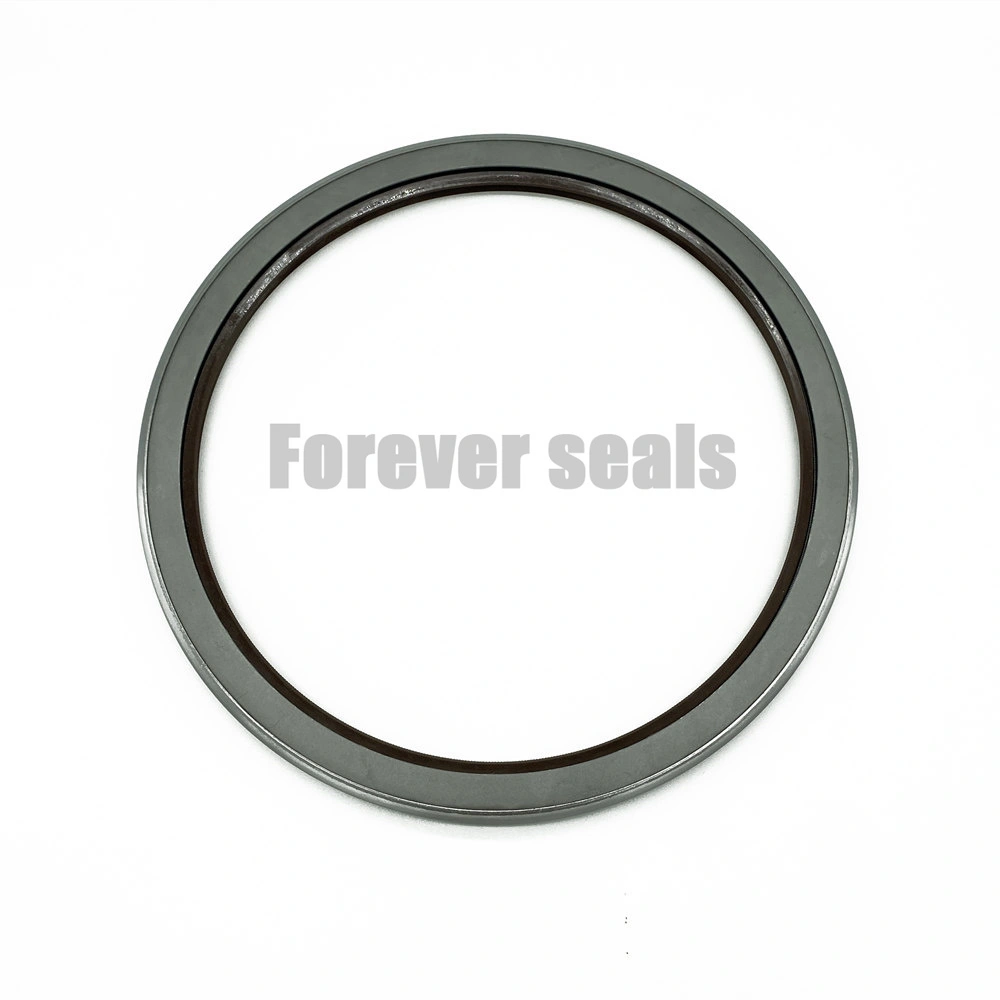

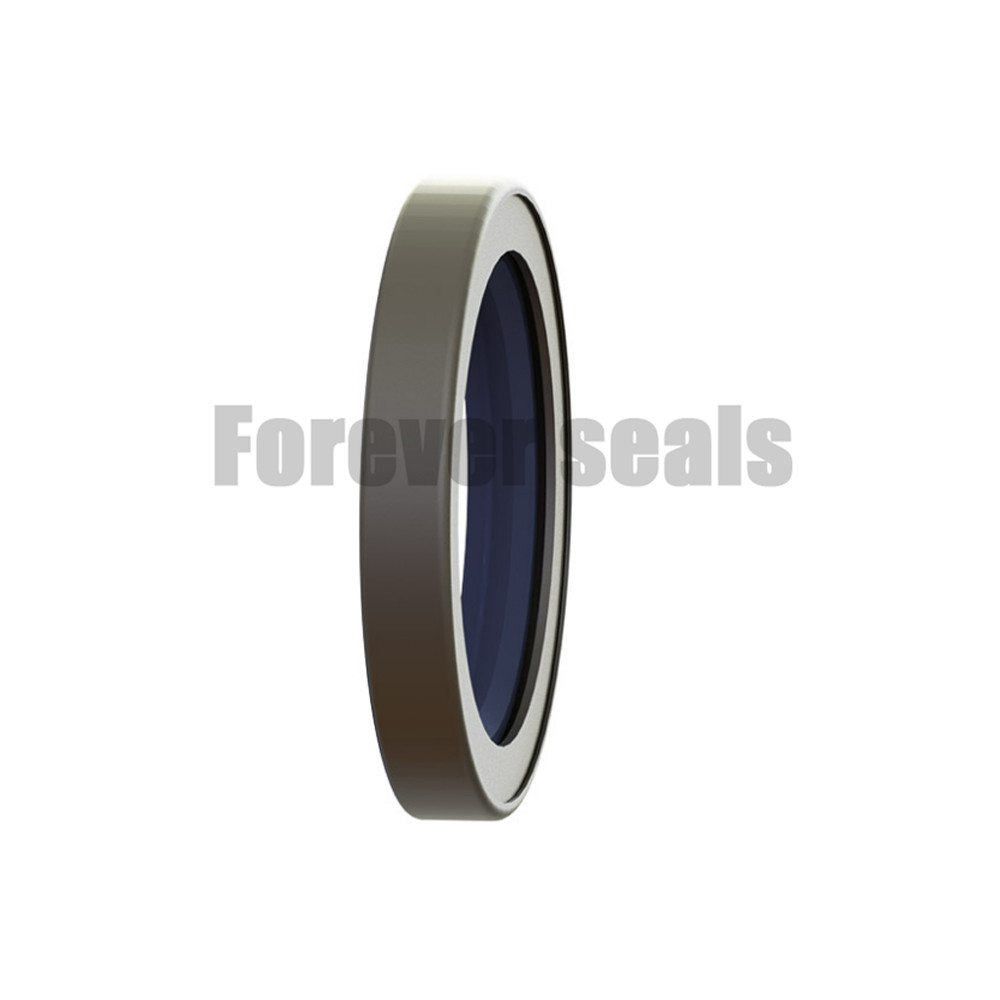

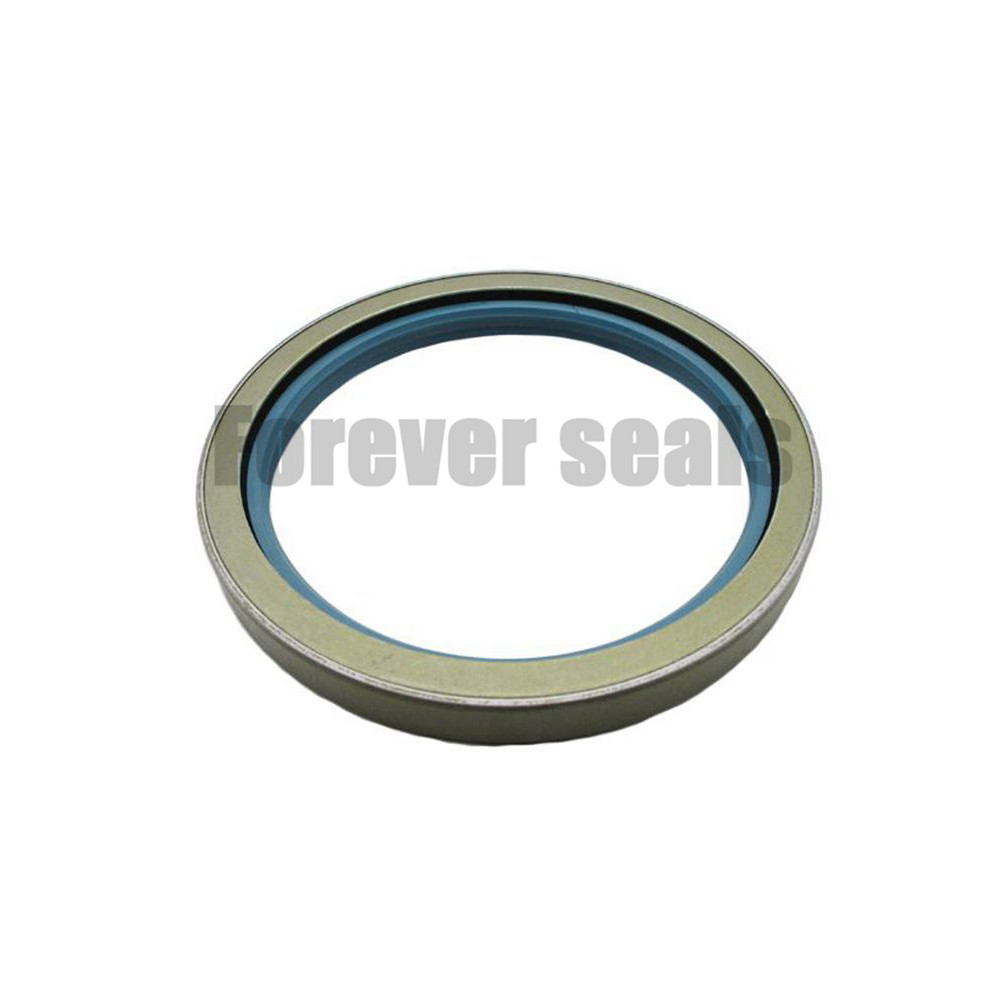

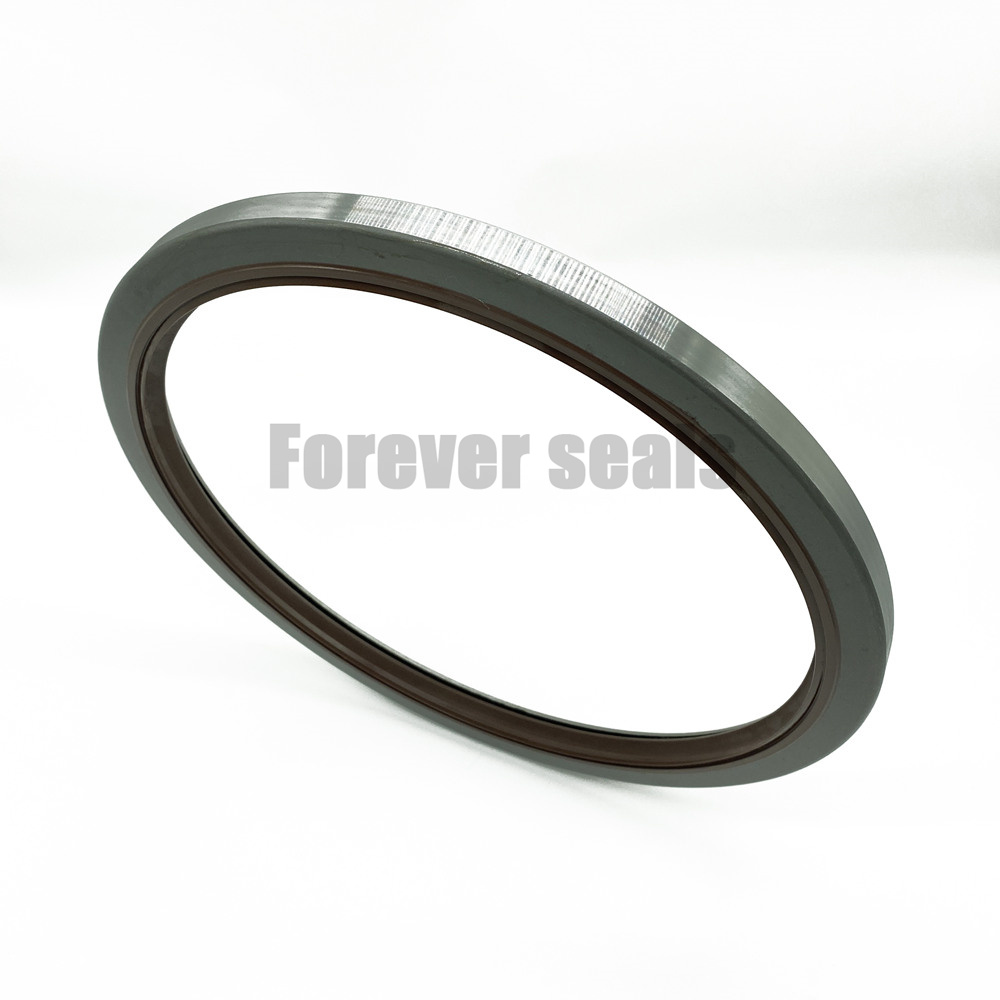

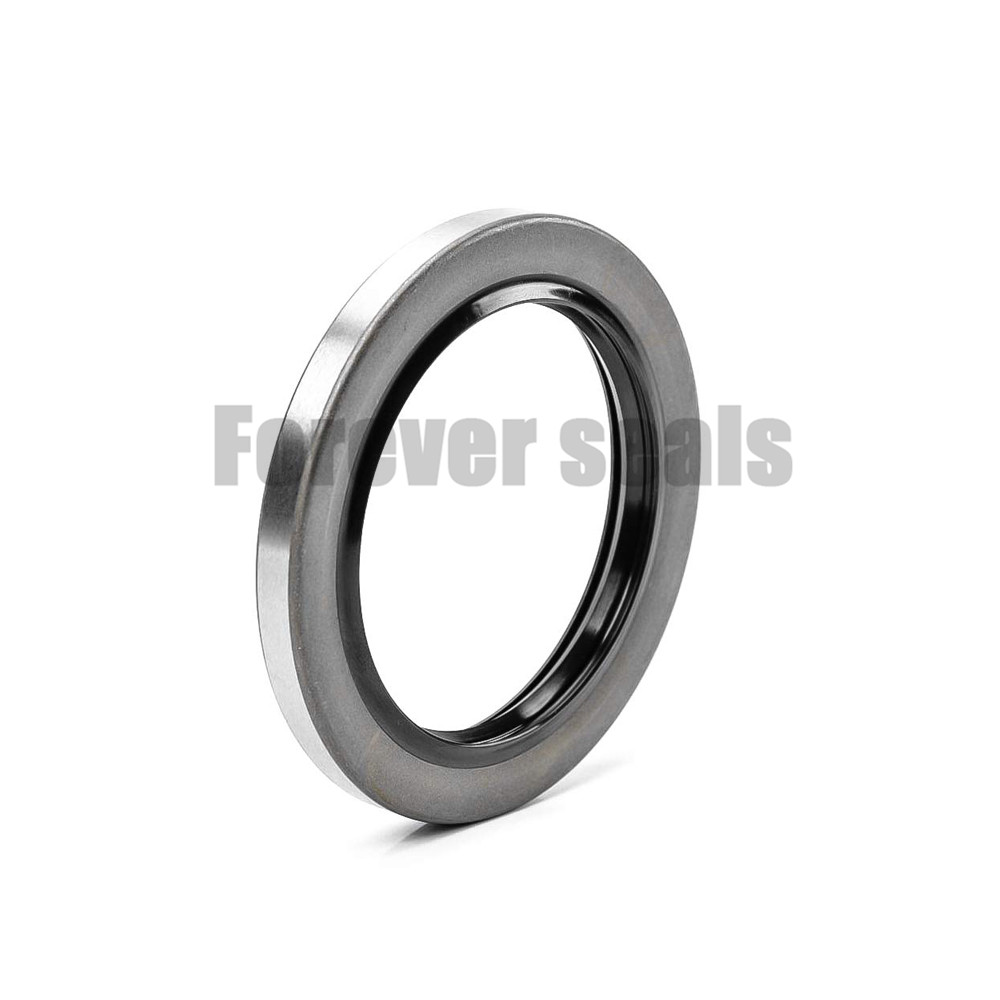

TA Oil Seal: Precision Sealing Solution
Engineered for Reliable Fluid Containment in Diverse Mechanical Applications
Engineered for superior fluid containment with precision design. Its single - lip structure (with optional double - lip variant) ensures easy installation and reduces failure risks. Crafted from premium NBR/FKM rubber and robust carbon steel/stainless steel frameworks, it operates reliably in the range of -40℃ to +100℃ (up to 120℃ for short - term) with a maximum pressure of 0.02MPa. Ideal for automotive transmissions, agricultural equipment, motors, and power tools, it enables a maximum speed of 8m/s with a dust lip, delivering exceptional durability and sealing efficiency to minimize leakage and maintenance costs.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
Reliable Sealing Performance: Made of high-quality NBR/FKM rubber and carbon steel/stainless steel framework, it effectively prevents fluid leakage, ensuring long-term stable operation of mechanical equipment.
Wide Temperature Adaptability: Operates normally in the range of -40℃ to +100℃, and can withstand short-term high temperatures up to 120℃, adapting to various harsh working environments.
Easy Installation & Low Failure Rate: The single-lip structure (optional double-lip variant) simplifies the installation process, reduces the risk of installation errors, and lowers subsequent maintenance frequency.
Dust-Proof & High-Speed Compatible: Equipped with a dust lip, it blocks external impurities; the maximum allowable linear speed reaches 8m/s, meeting the needs of high-speed rotating components.
2. Working Principle
The TA Oil Seal relies on the close fit between the rubber sealing lip and the rotating shaft. When the shaft rotates, the rubber lip generates a small amount of elastic deformation, forming a sealed oil film on the contact surface. This oil film not only prevents the internal lubricating oil or fluid from leaking but also blocks external dust, dirt, and other contaminants from entering the equipment, thereby protecting the internal components of the machinery. The metal framework provides structural support to ensure the oil seal maintains its shape and sealing effect under pressure and temperature changes.
3. Product Details
Material Selection: Rubber parts use NBR (excellent oil resistance) or FKM (superior high-temperature and chemical resistance); the framework adopts carbon steel (high strength) or stainless steel (corrosion resistance), ensuring product durability.

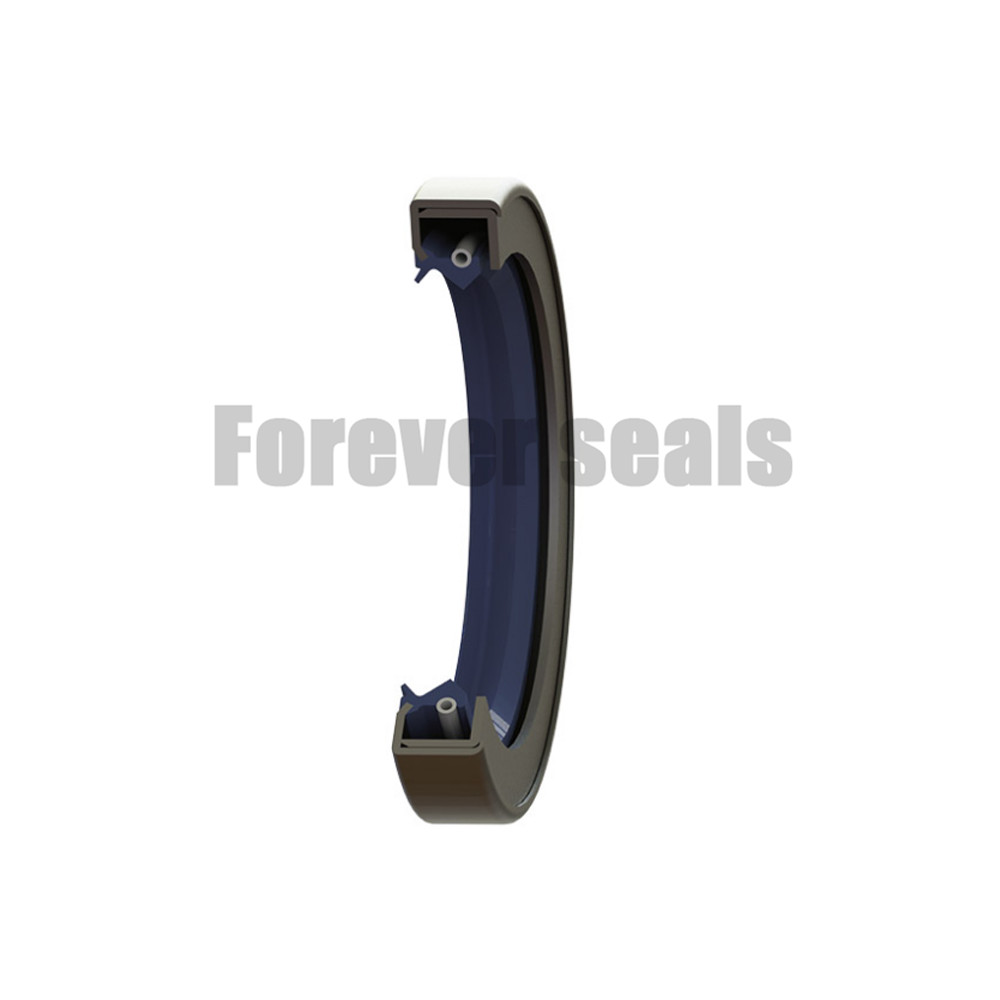

Structural Design: Single-lip design for basic sealing needs; double-lip variant with an additional dust lip for enhanced protection. The built-in spring (in some models) enhances the lip’s contact force with the shaft, improving sealing reliability.
Performance Parameters: Maximum working pressure: 0.02MPa; applicable medium: mineral oil, lubricating grease, etc.; service life: up to 5,000 hours under normal working conditions (varies by application scenario).
4. Application Range
Widely used in multiple industries and equipment, including:
Automotive industry: Automotive transmissions, engines, and axle systems.
Agricultural machinery: Tractors, harvesters, and irrigation equipment.
Electrical equipment: Motors, generators, and electric tools.
Industrial machinery: Gearboxes, pumps, and compressors.
5. FAQ
Q1: What should I pay attention to when installing the TA Oil Seal?
A1: Ensure the shaft surface is clean and free of burrs; apply a small amount of lubricating oil on the sealing lip before installation to avoid lip damage; install the oil seal in the correct direction (the sealing lip faces the fluid to be sealed).
Q2: Can the TA Oil Seal be used with corrosive media?
A2: The standard NBR version is suitable for non-corrosive media such as mineral oil. For corrosive media (e.g., acids, alkalis), please choose the FKM rubber variant, which has strong chemical resistance.
Q3: How to judge if the TA Oil Seal needs to be replaced?
A3: If you find fluid leakage around the seal, abnormal noise during equipment operation, or increased friction (resulting in temperature rise), it is recommended to check and replace the oil seal in time.
6. Company Selling Points (Forever Seals)
Professional Manufacturing Experience: With over 15 years of experience in seal production, we have mature production processes and strict quality control systems.
Customization Capabilities: We can provide customized TA Oil Seal solutions according to customers’ specific application scenarios (e.g., special temperature resistance, medium compatibility).
Global After-Sales Service: We have a professional after-sales team that provides technical support and product replacement services for customers worldwide, ensuring timely problem-solving.
Certified Quality: All products have passed ISO 9001 quality certification and SGS testing, meeting international quality standards and ensuring product reliability.
