  • Category: Rod seals
  • Temperature: -45 - +200℃
  • Pressure: 40MPa
  • Material: filled PTFE
  • Color: green, brown

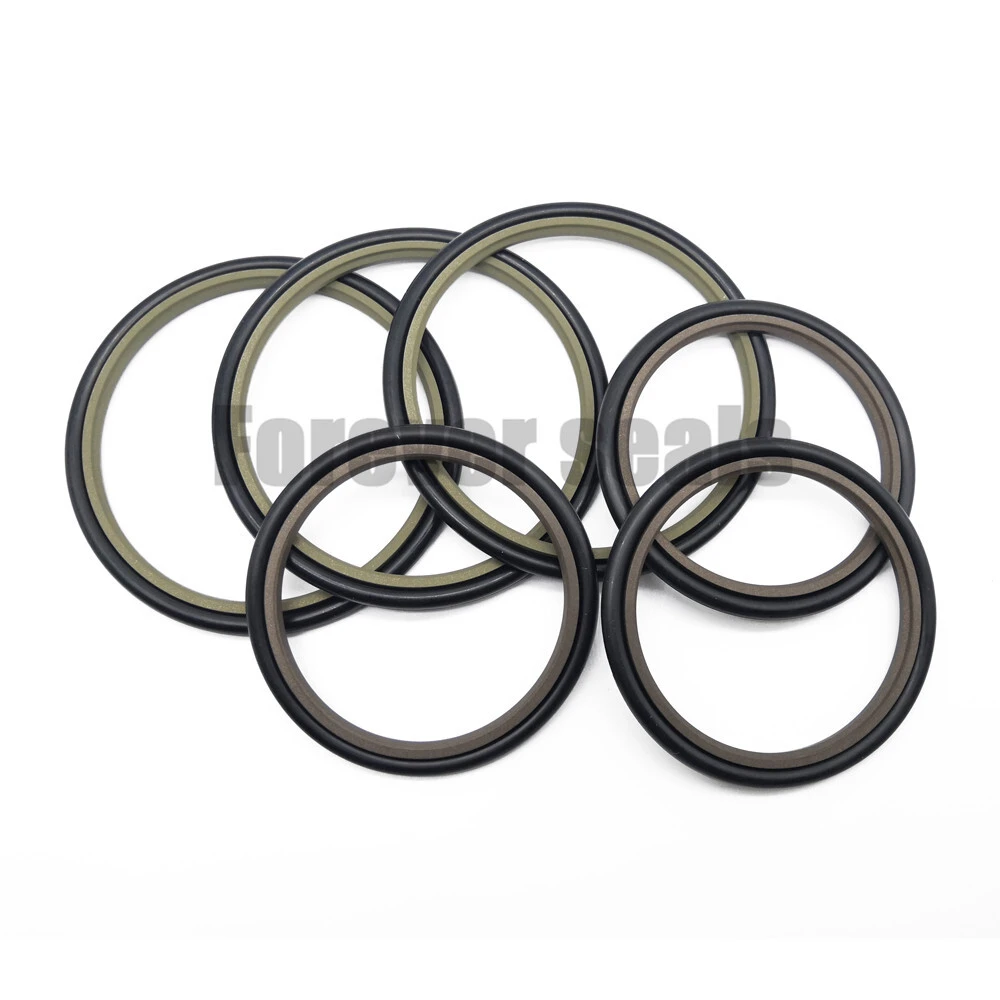

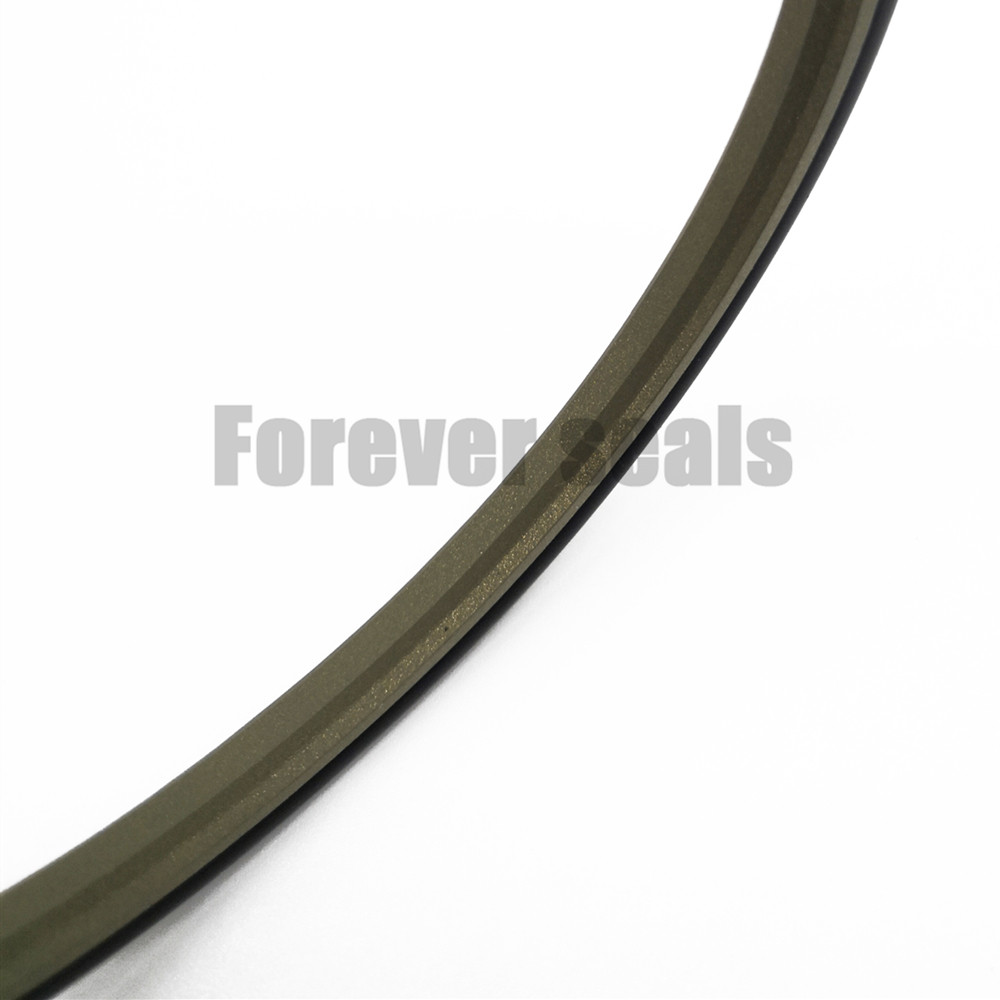

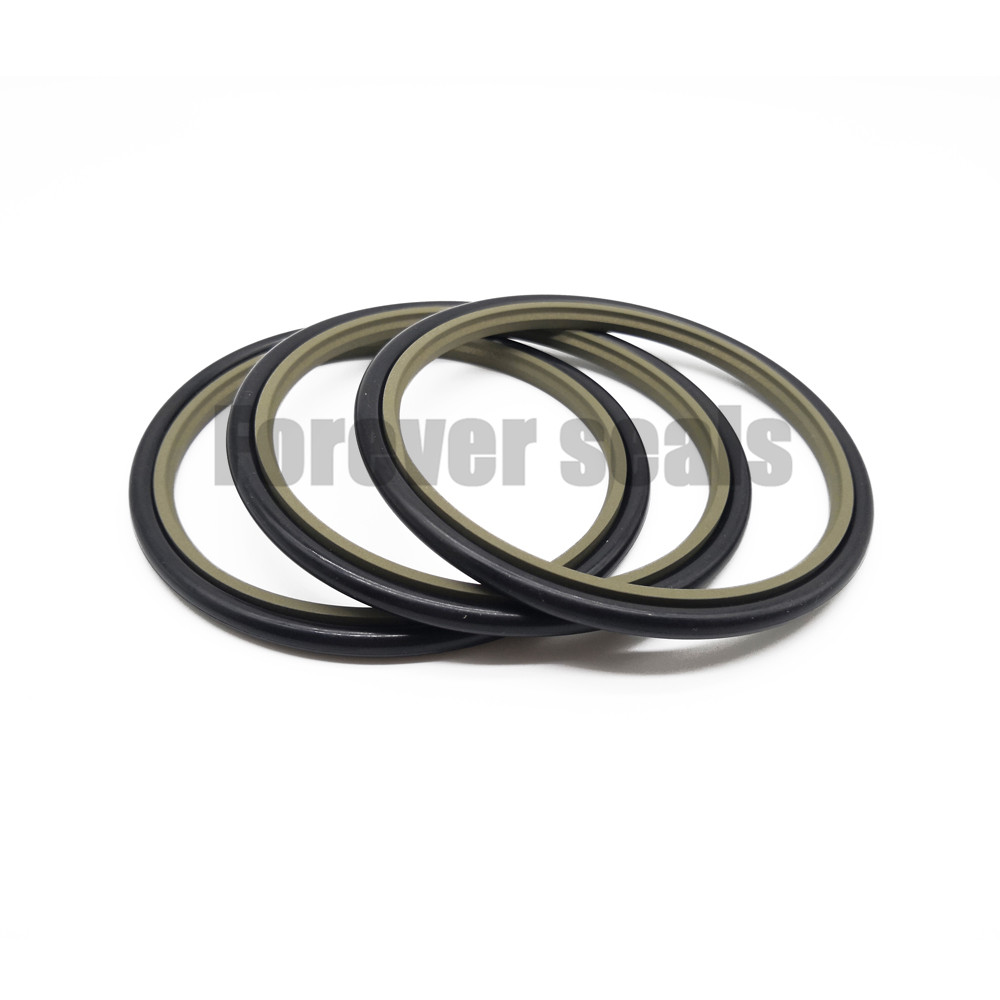

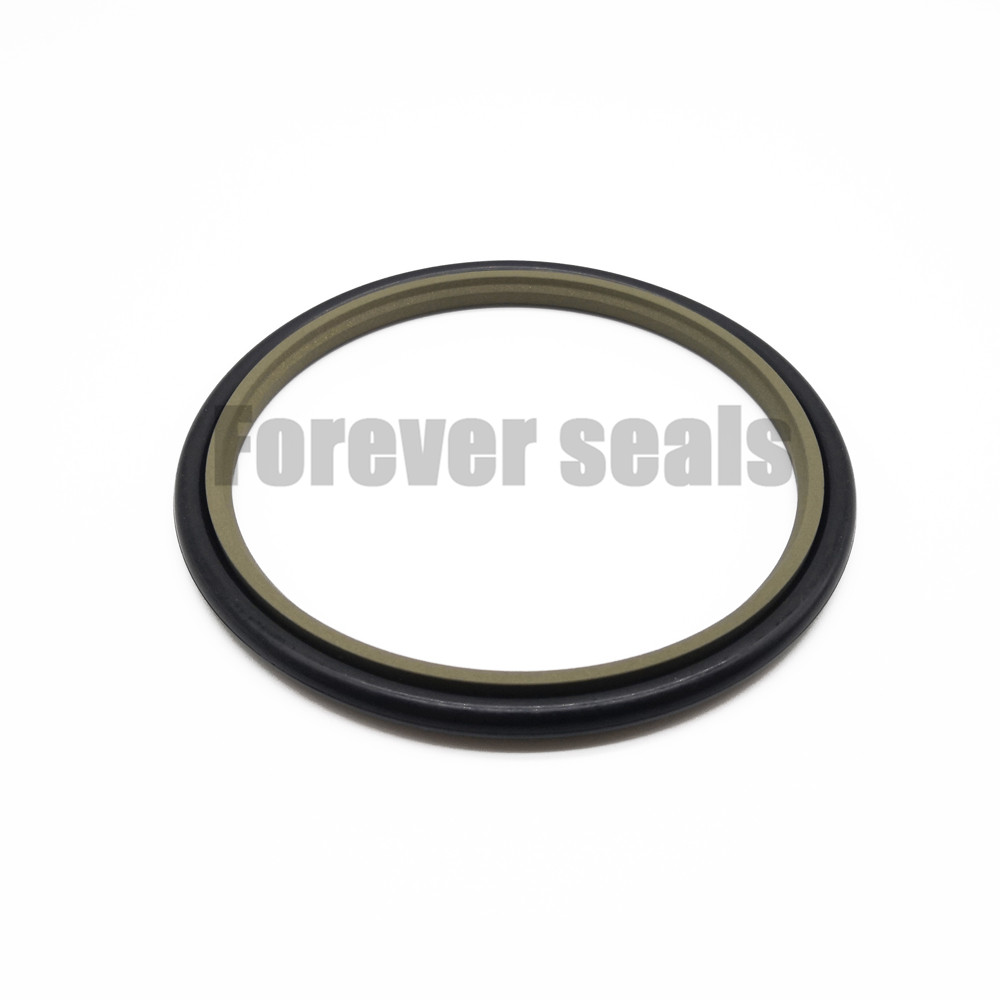

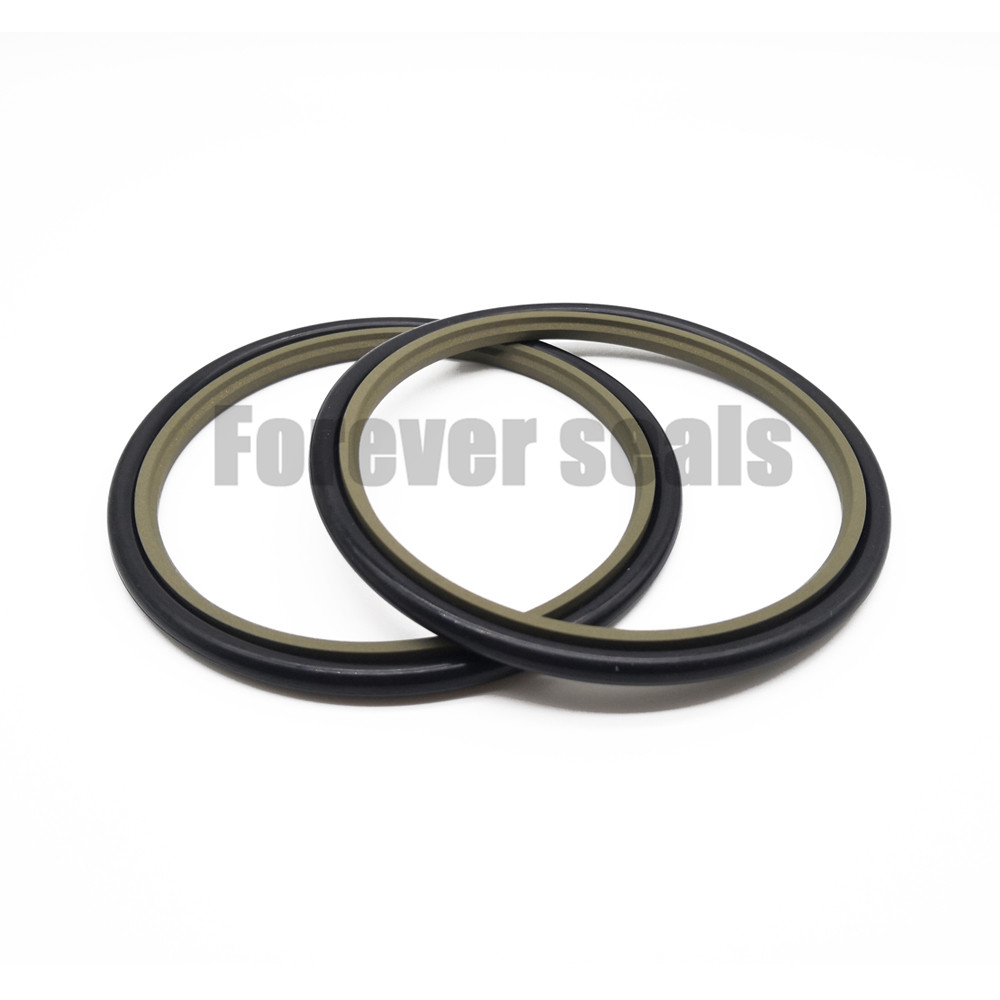

  • Product description:Hydraulic cylinder bronze PTFE rod buffer step seals

    oops...!

    no product data.

    Go to homepage

    More Choices

    no data

    1. Description

    A single-acting O-Ring energized rod seal for dynamic applications,step seals can be installed in closed grooves including grooves to ISO 7425. It offers high sealing efficiency, low friction with no stick-slip, minimal break out force and high wear resistance. Optimum sealing characteristics are achieved by installing in a tandem step seals arrangement together with a double-acting scraper. Available in bronze filled PTFE materials.

    2. Installation Recommendation

    Hydraulic cylinder bronze PTFE rod buffer step seals GSJ 8

    3. Installation dimensions - Standard recommendations

    Rod Diameter                         dN h9

    Groove Diameter

    Groove Width

    Radius

    Radial Clearance     S max.

    O-Ring Cross-Section

    Standard Application

    Light Application

    Heavy Duty Application

    D1 H9

    L1+0.2

    R1

    10MPa

    20MPa

    40MPa

    d2

    3-7.9

    8-18.9

    -

    dN+4.9

    2.2

    0.4

    0.3

    0.20

    0.15

    1.78

    8-18.9

    19-37.9

    -

    dN+7.3

    3.2

    0.6

    0.4

    0.25

    0.15

    2.62

    19-37.9

    38-199.9

    8-18.9

    dN+10.7

    4.2

    1.0

    0.4

    0.25

    0.20

    3.53

    38-199.9

    200-255.9

    19-37.9

    dN+15.1

    6.3

    1.3

    0.5

    0.30

    0.20

    5.33

    200-255.9

    256-649.9

    38-199.9

    dN+20.5

    8.1

    1.8

    0.6

    0.35

    0.25

    7.00

    256-649.9

    650-999.9

    200-255.9

    dN+24.0

    8.1

    1.8

    0.6

    0.35

    0.25

    7.00

    650-999.9

    ≥1000.0

    256-649.9

    dN+27.3

    9.5

    2.5

    0.7

    0.50

    0.30

    8.40

    ≥1000.0

    -

    650-999.9

    dN+38.0

    13.8

    3.0

    1.0

    0.70

    0.60

    12.00

    4. Standard materials

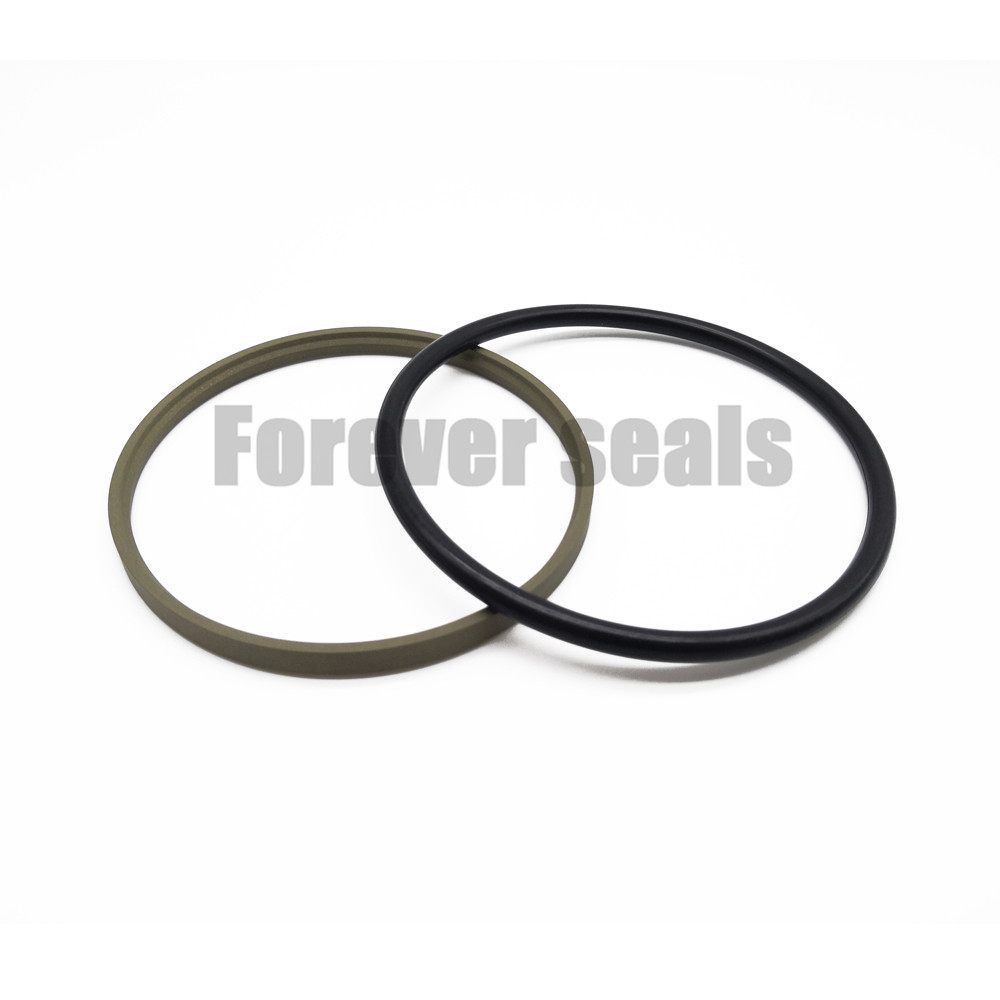

    Sealing ring: filled PTFE

    O-Ring: NBR / FKM

    5. Working Conditions

    Diameter Range

    Pressure Range

    Temperature Range

    Speed

    Medium

    3 - 1600mm

    0 - 60MPa

    -45℃ +200℃

    15 m/s

    hydraulic oil, flame retardant liquid, water, gas
