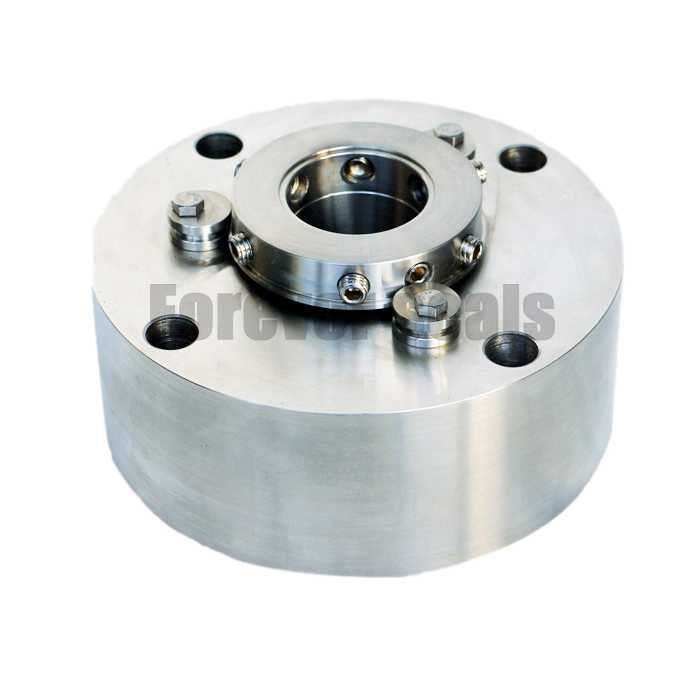

HSPBS - 1 Bellows Mechanical Seal
Premium Sealing Solution Meeting API682 and JB8723 Standards
Positioned on the right of the product main image, the HSPBS - 1 Bellows Mechanical Seal is crucial for rotating machinery. Complying with API 682 and JB 8723 standards, it offers single/double - end face sealing, cartridge/non - cartridge options, and a balanced - type design. It can endure pressures up to 6.9 MPa, speeds ≤50 m/s, and temperatures from - 75 to 425 °C, making it ideal for media such as hydrocarbons and high - temperature viscous substances. With reliable sealing, wide adaptability, and sturdy construction, it's a prime choice for ensuring equipment efficiency and preventing leaks, helping consumers make quick decisions.
5.0
design customization
Please fill out the form below to request a quote or to request more information about us. Please be sure to upload customized requirement documents or pictures, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
Please fill out the form below to request a quote or to request more information about us. please be as detailed as possible in your message, and we will get back to you as soon as possible with a response. we're ready to start working on your new project, contact us now to get started.
1. Product Advantages
High Compliance and Reliability: Meeting API 682 and JB 8723 standards, the HSPBS - 1 ensures strict sealing performance to prevent leakage. It comes with single - end face and double - end face sealing options to cater to different sealing needs.
Wide Adaptability: It can handle pressures from 0 to 2.0 MPa (single - layer) and up to 6.9 MPa (double - layer). Suitable for linear speeds ≤25/50 m/s and temperatures ranging from - 75 to 425 °C, making it fit for various harsh working conditions.
Diverse Configurations: Offered in cartridge and non - cartridge styles, as well as a balanced - type design. It also comes in stationary (606 type, 604 type) and rotating (609 type) forms, providing flexibility for different installation and operational requirements.
2. Working Principle
The bellows component in the HSPBS - 1 acts as a flexible element, providing necessary axial compensation. When the equipment shaft rotates, the rotating part of the seal moves with the shaft, while the ![HSPBS - 1 Bellows Mechanical Seal 4]()
part remains fixed. The close contact between the sealing faces, maintained by the bellows and auxiliary sealing elements, prevents the medium from leaking, thus achieving effective sealing.
3. Product Details
Standards Compliance: Meets API 682 and JB 8723 standards.
Sealing Options: Single - end face/double - end face sealing.
Types: Cartridge/non - cartridge; balanced - type; stationary (606 type, 604 type)/rotating (609 type).
Parameter Ranges: Pressure - 0 ~ 2.0 MPa (single - layer), 0 ~ 6.9 MPa (double - layer); Linear speed - ≤25/50 m/s; Temperature - - 75 ~ 425 °C.
Applicable Media: Hydrocarbons, thermosetting, and high - viscosity high - temperature media, etc.
4. Application Range
The HSPBS - 1 is widely used in:
Petrochemical industry: For pumps and compressors handling various chemical media.
Oil and gas industry: In equipment dealing with oil and natural gas transmission.
Chemical processing: For reactors and other equipment involving corrosive and high - temperature media.
5. FAQ
Q1: What is the difference between single - end face and double - end face sealing in HSPBS - 1?
A1: Single - end face sealing uses one pair of sealing faces, suitable for relatively clean media. Double - end face sealing has two pairs of sealing faces, providing better sealing for more demanding or hazardous media.
A1: Single - end face sealing uses one pair of sealing faces, suitable for relatively clean media. Double - end face sealing has two pairs of sealing faces, providing better sealing for more demanding or hazardous media.
Q2: Can HSPBS - 1 be used in high - temperature applications?
A2: Yes, it can operate in temperatures up to 425 °C, making it suitable for high - temperature environments.
A2: Yes, it can operate in temperatures up to 425 °C, making it suitable for high - temperature environments.
Q3: Are cartridge seals of HSPBS - 1 easier to install?
A3: Yes, cartridge seals come as a pre - assembled unit, simplifying installation and reducing the chance of installation errors.
A3: Yes, cartridge seals come as a pre - assembled unit, simplifying installation and reducing the chance of installation errors.
6. Company Selling Points (Forever Seals)
Quality Focus: Forever Seals is dedicated to producing high - quality sealing products, and the HSPBS - 1 undergoes strict quality control to ensure reliable performance.
Customization Ability: Can provide customized solutions for HSPBS - 1 based on specific customer requirements for parameters like pressure, temperature, and media.
Technical Support: Offers professional technical support to assist customers in selecting the right HSPBS - 1 seals and solving any problems during use.
